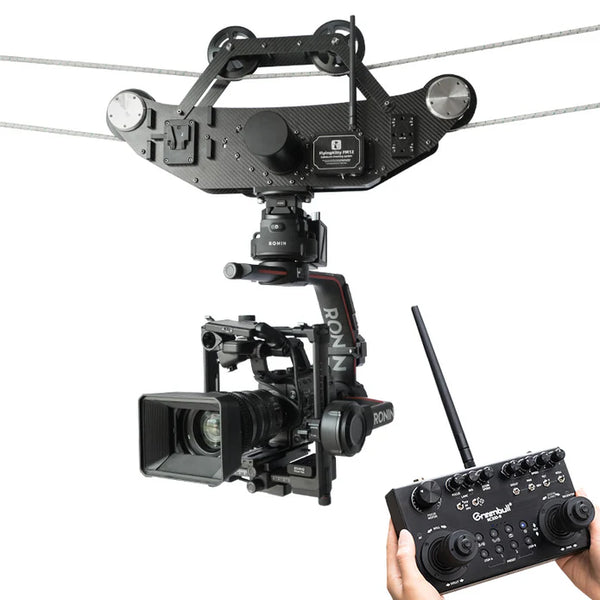

High load-bearing professional-grade cablecam
FlyingKitty FM12 III PRO
Long Distance, Ultra Stable, Professional Cinematic Solution
12KG max payload, 300m Φ8MM polymer fiber rope, 5m/s top speed, DJI stabilizer control (Ronin 2/RS2/RS3PRORS4/RS4PRO), dual remote system, multi-axis synchronous cruise, 4 pre-stored key positions, RC300 joystick remote, foot controller etc... FlyingKitty FM12 III Pro is a game-changer for professional medium-duty cable shooting, boasting cutting-edge integration that redefines heavy-load aerial imaging capabilities and elevates on-site production flexibility to unprecedented heights. This flagship cable shooting system is set to transform how you capture grand-scale dynamic scenes, breaking through payload and speed limitations to unlock new creative horizons in large-scale events, sports broadcasts, film productions, and outdoor reality shows.
Product Details
Explore the exquisite craftsmanship and innovative design details.

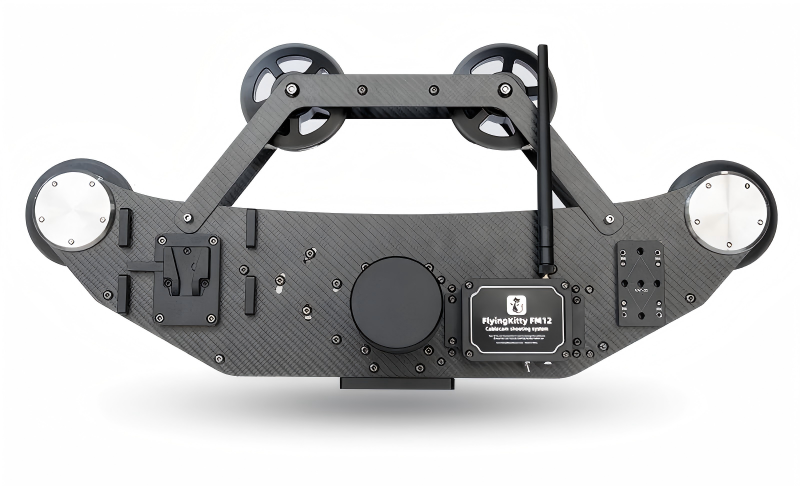

Carbon Fiber Cablecam Dolly
4 wheels, large torque servo motor for power, precise positioning, quiet and smooth, steplessspeed regulation, climbing power anc hovering ability, payload up to12 kg.

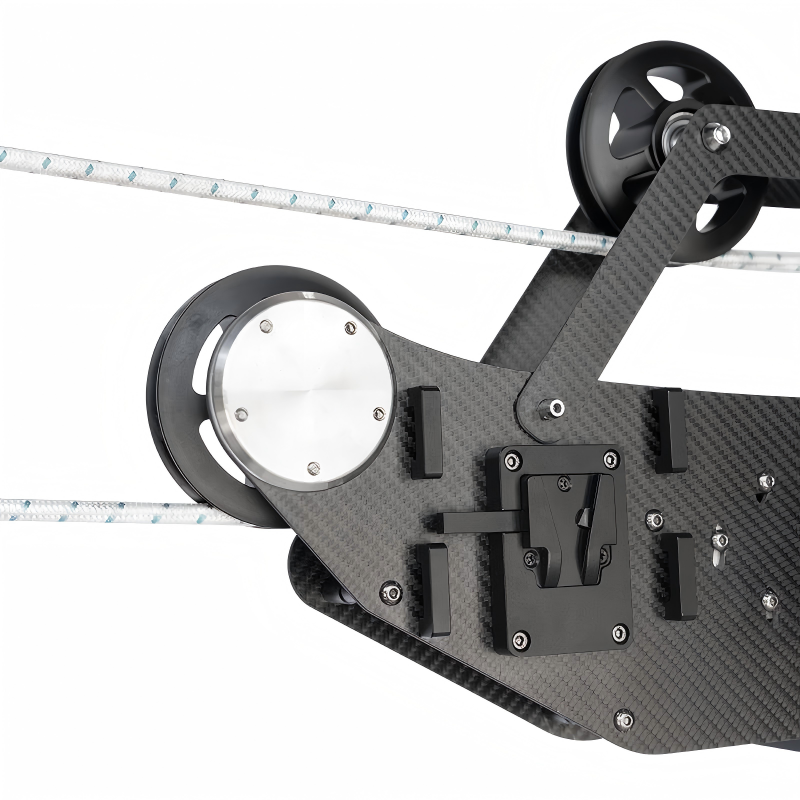

Double Cables
Enhanced safety and stability.

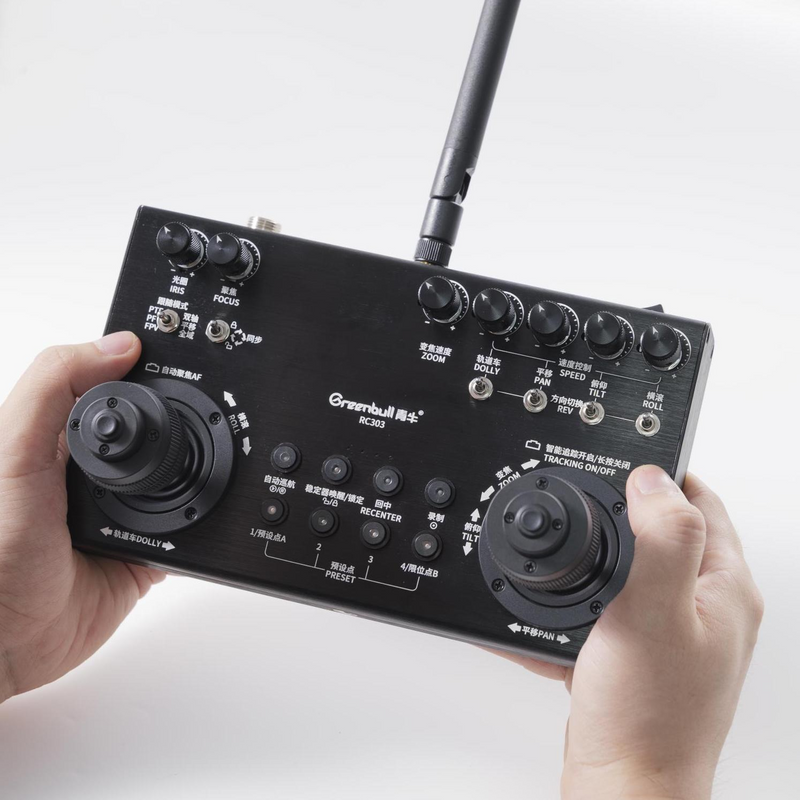

Multifunctional Remote Control
Equipped with a new electronic control system,capable of controlling the dolly, stabilizer,video camera/camera, and follow focus motor.

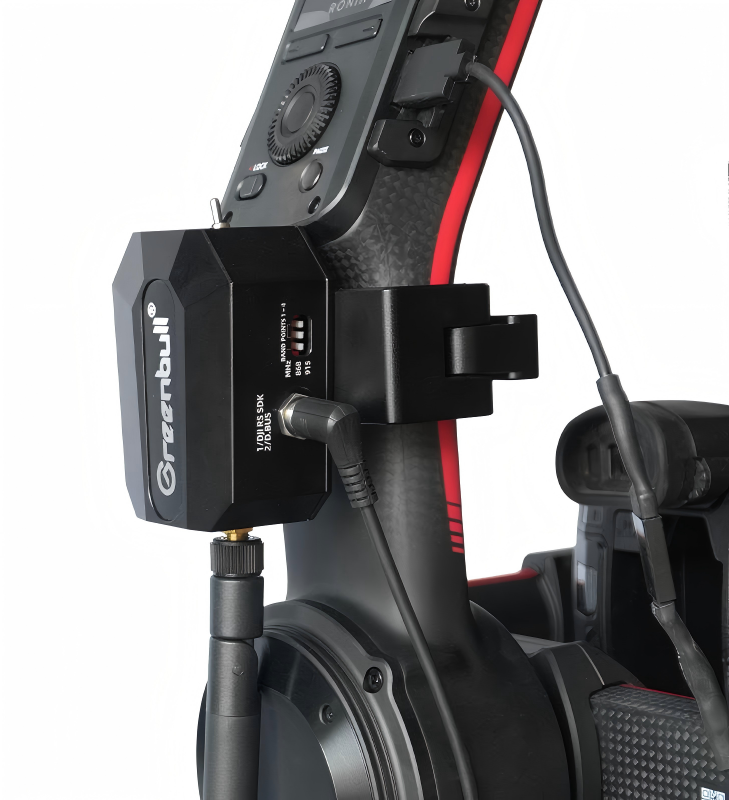

Dual Remote Control System
In addition to the stabilizer and camera control interface on the dolly, can also choose anindependentstabilizer and camera remote control receiver for more flexible control.

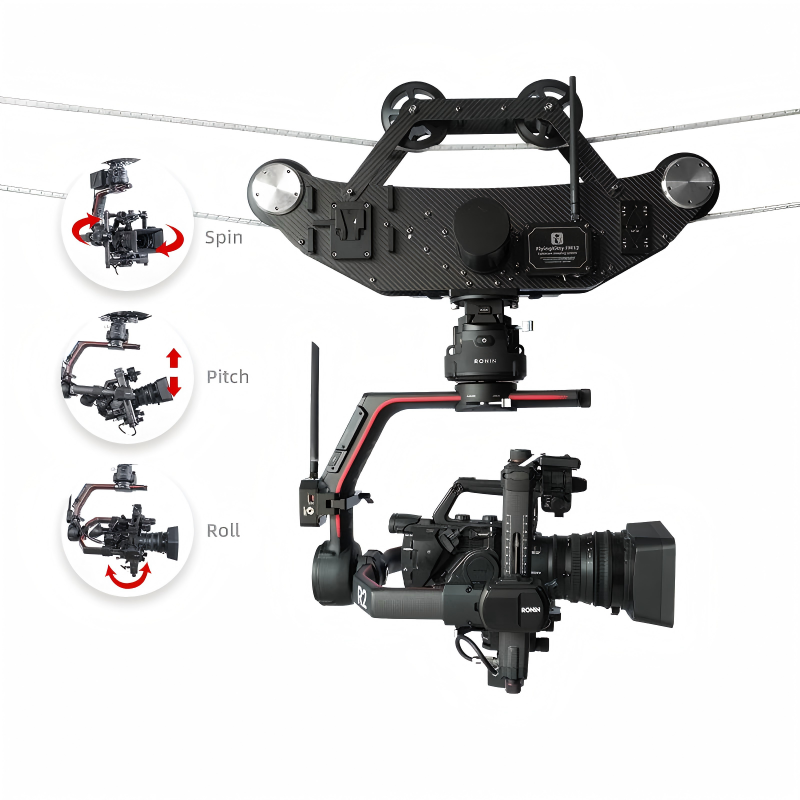

Capable of Controlling DJI R2
Compatible with the D.BUS protocol, capable of controlling the panning, tilting, rollingneutral of DJI R2stabilizer.

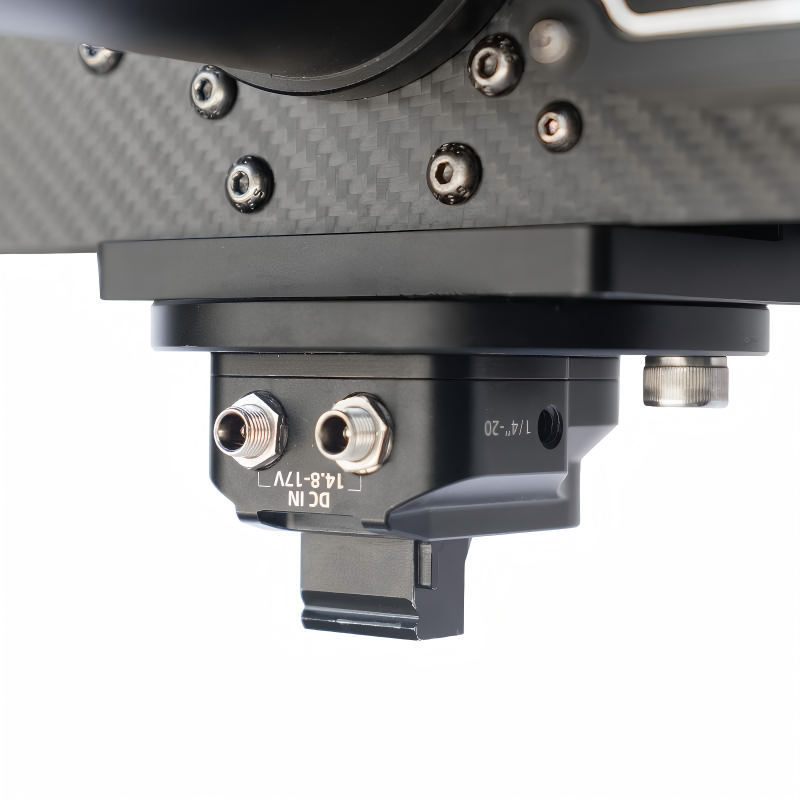

Stable Power Supply Base
Compatible with DJI RS2 / RS3 PRO / RS4 / RS4 PRO, supports power supply for these four stabilizers.

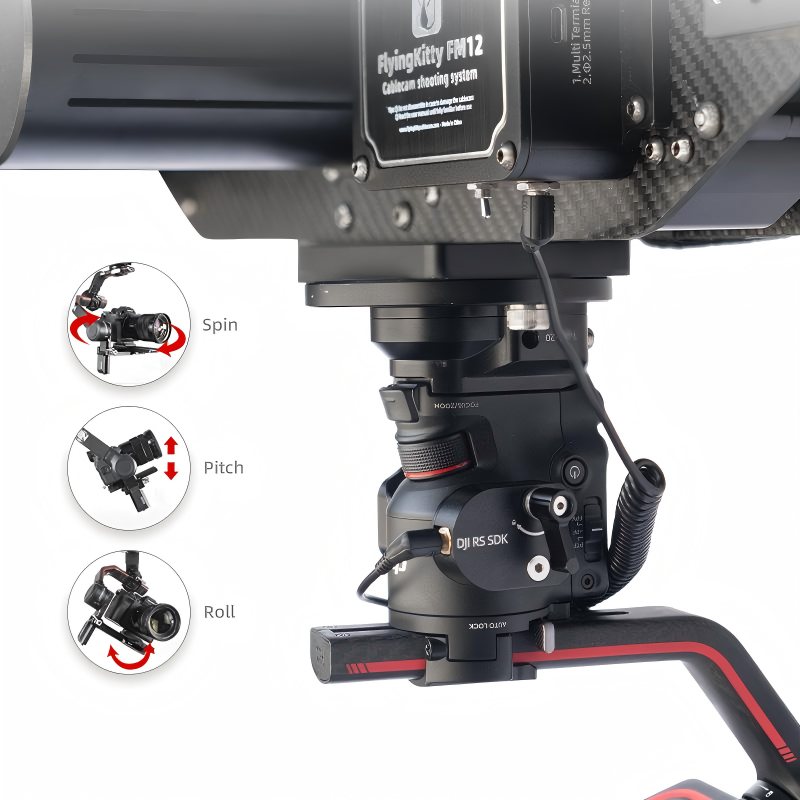

DJI Rs Sdk Remote Control
Deeply compatible with DJI RS SDK protocol, stabilizer rotation, tilt, roll, motor lock,back to the center and DJI RS follow focusmotor control functions.

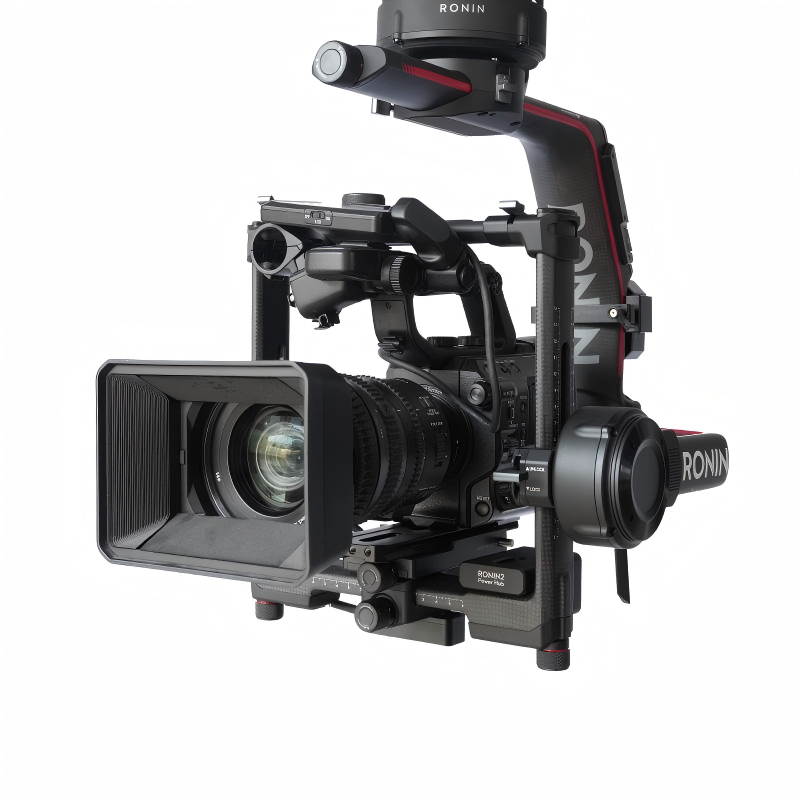

Video Camera Remote Control
Capable of controlling the zoom, focus, iris, recording and other functions of video cameras,such as Sony Z90/FX6 and other models.

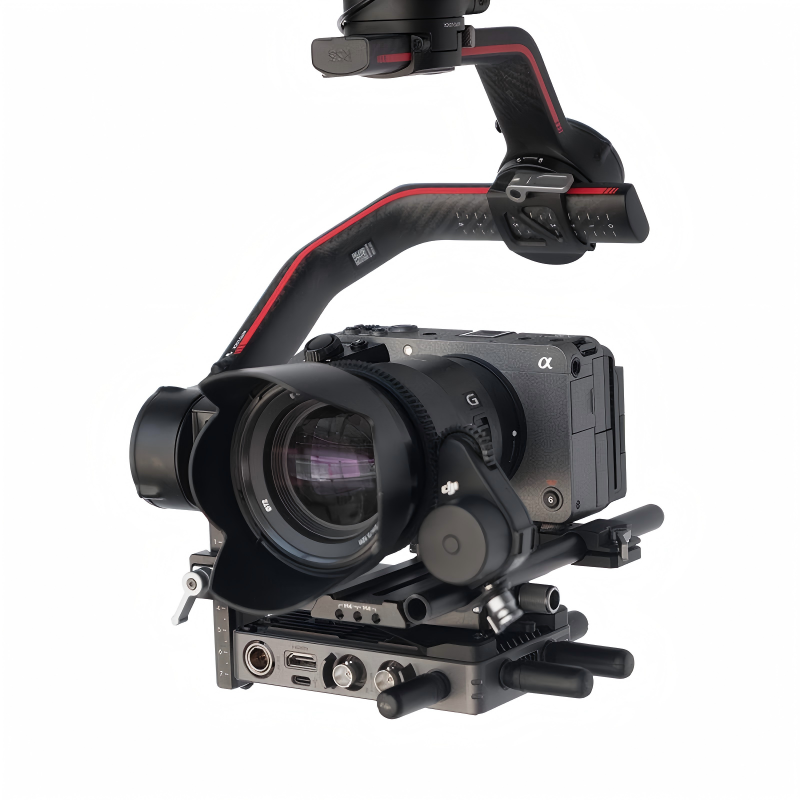

Camera Remote Control
The electronic control system also enables control of micro-single cameras for Sony cameraswith multi-purposeports, such as the A7Slll, FX3, FX30,etc. It can control the camera zoom*,recording, picture taking, auto-focusing, and so on;.

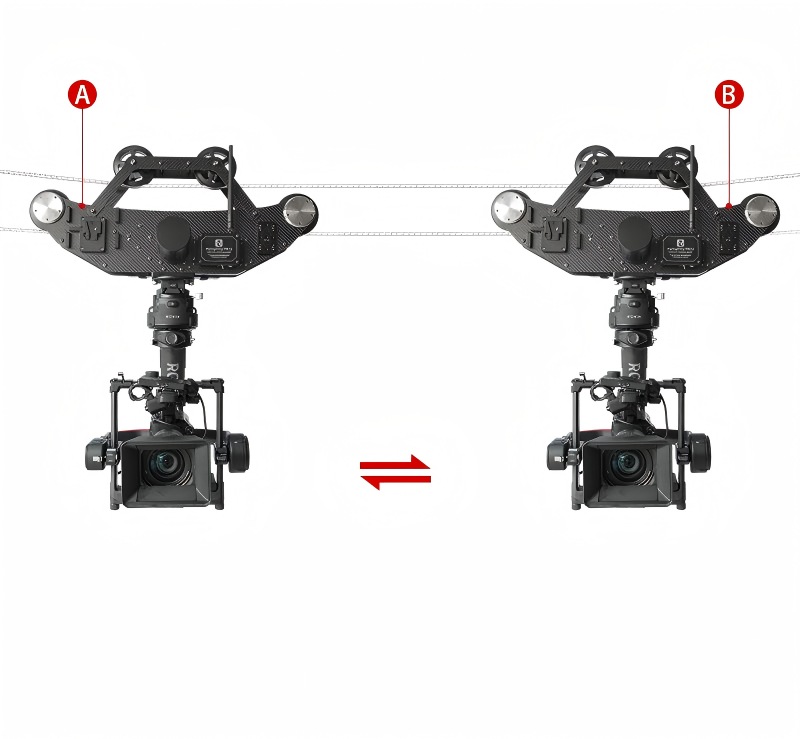

Virtual A/b Safety Points
Setting virtual starting and stopping points (A/B safety points) for the dolly to operatewithin a safe range.

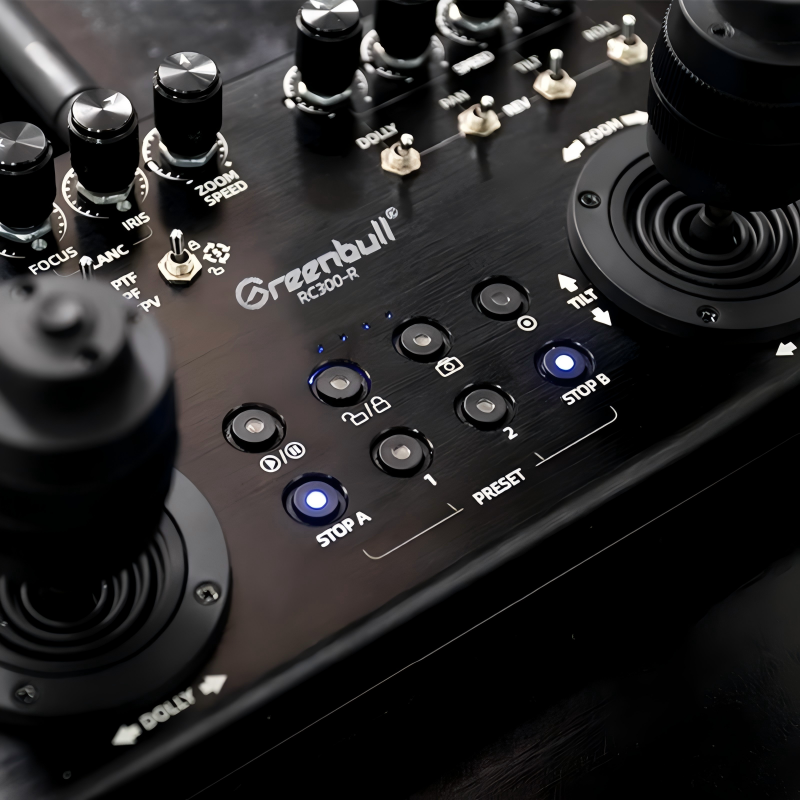

Preset Key Points
For the pro version, 4 key points can be preset, running the dolly to the desiredpositions at any time as needed.

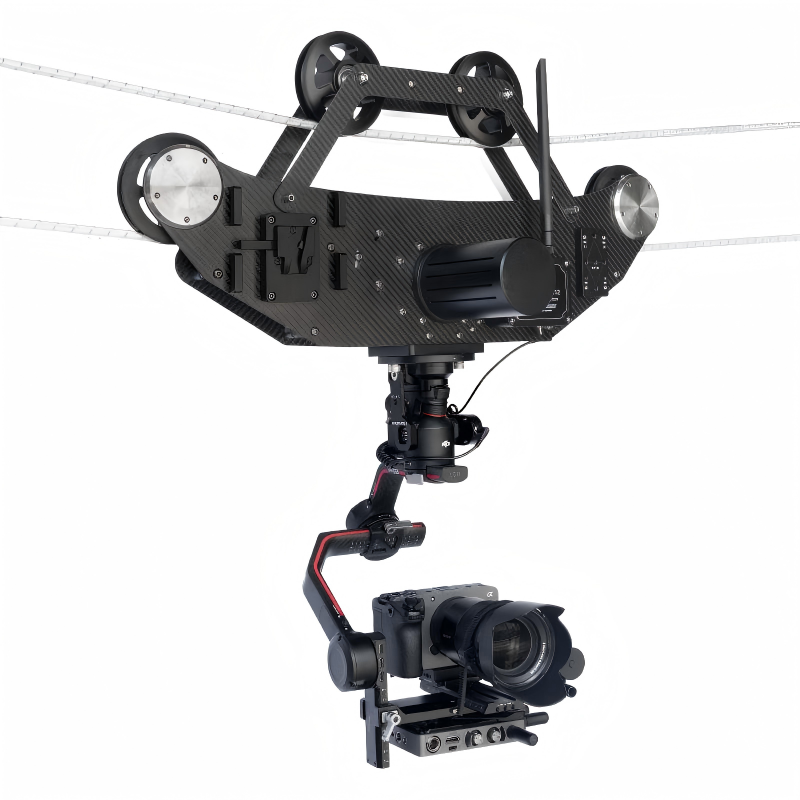

Multi-axis Synchronous Cruise
Achieving multi-axis synchronous operation and cruise shooting, with the dolly, stabilizer all working simultaneously. *Taking the dolly speed asthe reference value, when the dolly speed has a large difference with the motor speed of thestabilizer , it will be out of the permissible range of synchronous linkage.

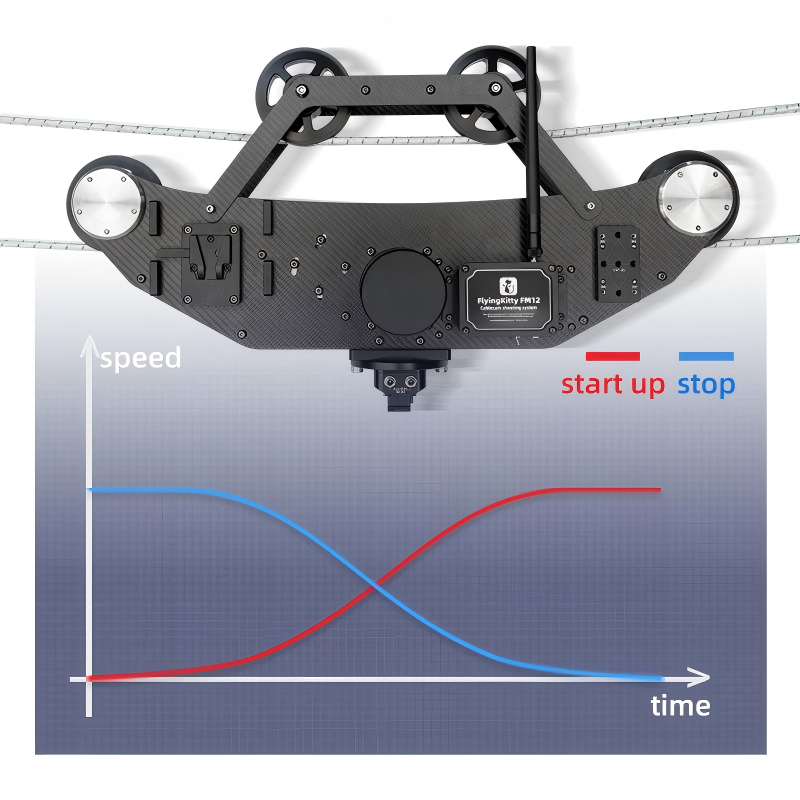

Gentle Starts and Stops
Corresponding damping buffer ensuring gentle and smooth starts and stops.

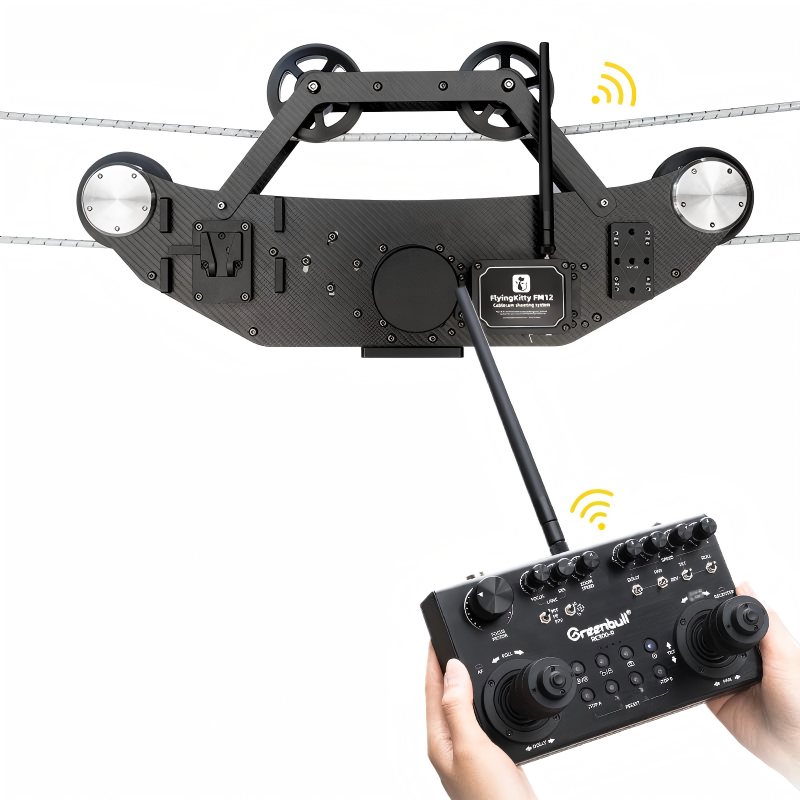

Dual-frequency Wireless Remote Control
Via 868 or 915 MHZ, control distance 100 meters in an open environment. In addition, eachfrequency band can also be switched to 4 frequency points, allowing the use of multipledevices in the same scene.

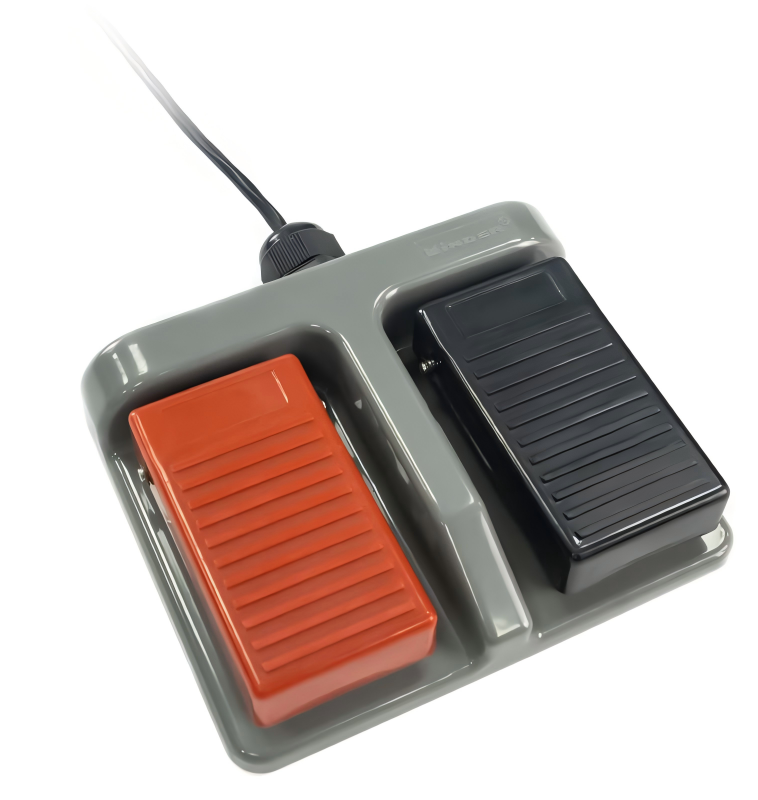

Pedal Control
FM12 Ill pro users can control the dolly with the pedals.

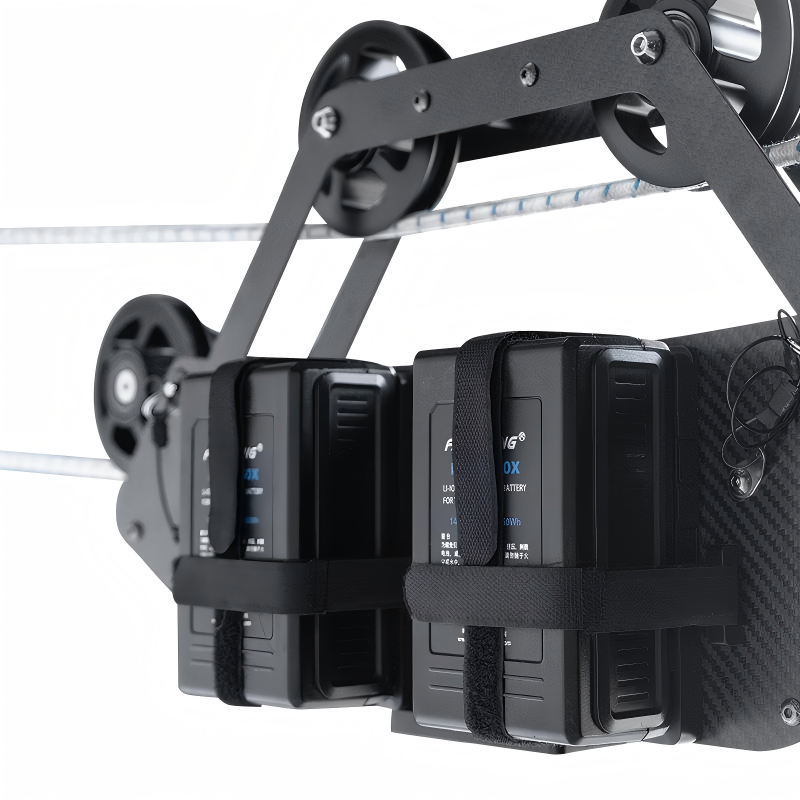

Durable Endurance
V-port lithium battery power supply, easy to use and replace, to meet the needs of long-time work.*V-port lithium batteries need to be provided by the user or purchased separately.

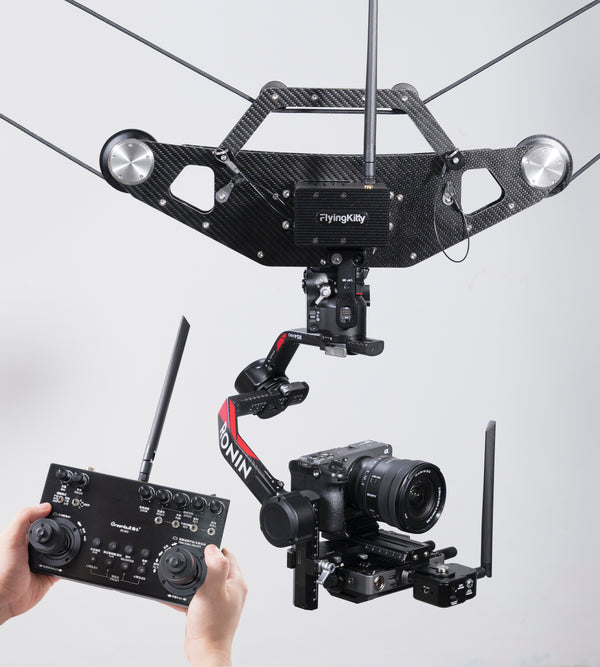

| Specification | FM6 III PRO | FM6 MAX | FM12 III PRO |
|---|---|---|---|
| Max Payload (Including Gimbal) | ≤ 6 kg | ≤ 6 kg | ≤ 12 kg |
| Speed Range | ≤ 2.8 m/s | ≤ 2.8 m/s | ≤ 5 m/s |
| Operating Voltage | 14.8V | 14.8V | 29.6V |
| Standard Cableway | 200m black fiber rope (Φ5mm) | 300m black fiber rope (Φ5mm) | 300m black fiber rope (Φ8mm) |
| Remote Controller | RC303 multi-function remote with 3D joystick | RC303 multi-function remote with 3D joystick | RC303 multi-function remote with 3D joystick |
| Control Method | Dual-band wireless | Dual-band wireless; Dual remote control system | Dual-band wireless; Dual remote control system |
| Power Supply Interface | 1 V-mount battery plate (powers both gimbal and cable car) | 2 V-mount battery plates; Separate power for gimbal and cable car | 3 V-mount battery plates; Separate power for gimbal and cable car |
| Independent Receiver | — | Independent 2nd-gen mirrorless/camera controller; Works with Sony mirrorless (e.g. FX3, FX30) to control aperture, focus, zoom, recording, etc.; Works with DJI gimbals (R2, RS4PRO, RS4, RS3 PRO, RS2) | Independent 2nd-gen mirrorless/camera controller; Works with Sony mirrorless (e.g. FX3, FX30) to control aperture, focus, zoom, recording, etc.; Works with DJI gimbals (R2, RS4PRO, RS4, RS3 PRO, RS2) |
| Cable Car Control | Stepless speed control + AB virtual limit + 2 presets + foot controller + auto cruise | Stepless speed control + AB virtual limit + 2 presets + foot controller + auto cruise | Stepless speed control + AB virtual limit + 2 presets + foot controller + auto cruise |
| Gimbal Power Supply Base | Split type | All-in-one type | Split type |
| Gimbal Control (DJI RS SDK Protocol) | 3-axis attitude control/direction switch/speed adjustment/reset/lock/wake-up; Follow mode switch; Cable car multi-axis sync | 3-axis attitude control/direction switch/speed adjustment/reset/lock/wake-up; Follow mode switch; Cable car multi-axis sync | 3-axis attitude control/direction switch/speed adjustment/reset/lock/wake-up; Follow mode switch; Cable car multi-axis sync |
| DJI RS Intelligent Tracking Module Control | — | *On/Off/Framing; For DJI RS 4 Pro / RS 4 | *On/Off/Framing; For DJI RS 4 Pro / RS 4 |
| R2 (DJI Ronin2) Gimbal Control (D-BUS Protocol) | Rotation, tilt, roll, reset, etc. | Rotation, tilt, roll, reset, etc. | Rotation, tilt, roll, reset, etc. |
| DJI RS Follow Focus Motor Control | Zoom mode; Motorized zoom for manual lenses | Zoom mode; Motorized zoom for manual lenses | Zoom mode; Motorized zoom for manual lenses |
| Camera Remote Control (DJI RS Compatible Cameras) | Aperture, shutter, ISO, recording, focus, etc.; For all DJI RS4PRO, RS4, RS3 PRO, RS2 compatible cameras (check DJI official site for details) | Aperture, shutter, ISO, recording, focus, etc.; For all DJI RS4PRO, RS4, RS3 PRO, RS2 compatible cameras (check DJI official site for details) | Aperture, shutter, ISO, recording, focus, etc.; For all DJI RS4PRO, RS4, RS3 PRO, RS2 compatible cameras (check DJI official site for details) |
| Mirrorless Camera Remote Control | Zoom/zoom speed, recording, auto focus, etc. (e.g. A7SIII, FX3, FX30); Zoom works only with electric zoom lenses | Aperture, focus, zoom, recording; For Sony models (e.g. FX3, FX30); Zoom works only with electric zoom lenses, such as: 1. FE 4/PZ 28-135 full-frame EZ lens 2. FE 4/PZ 16-35 full-frame wide-angle EZ lens 3. E 4/PZ 18-105 EZ lens 4. E 4/PZ 10-20 ultra-wide EZ lens | Aperture, focus, zoom, recording; For Sony models (e.g. FX3, FX30); Zoom works only with electric zoom lenses, such as: 1. FE 4/PZ 28-135 full-frame EZ lens 2. FE 4/PZ 16-35 full-frame wide-angle EZ lens 3. E 4/PZ 18-105 EZ lens 4. E 4/PZ 10-20 ultra-wide EZ lens |
| Camera Remote Control (LANC Protocol) | Zoom/zoom speed, focus, aperture, recording, etc. (e.g. Sony FX6, Z200, Z90) | Zoom/zoom speed, focus, aperture, recording, etc.; For Sony models (e.g. FX6, Z200, Z90) | Zoom/zoom speed, focus, aperture, recording, etc. (e.g. Sony FX6, Z200, Z90) |
Application Scenario

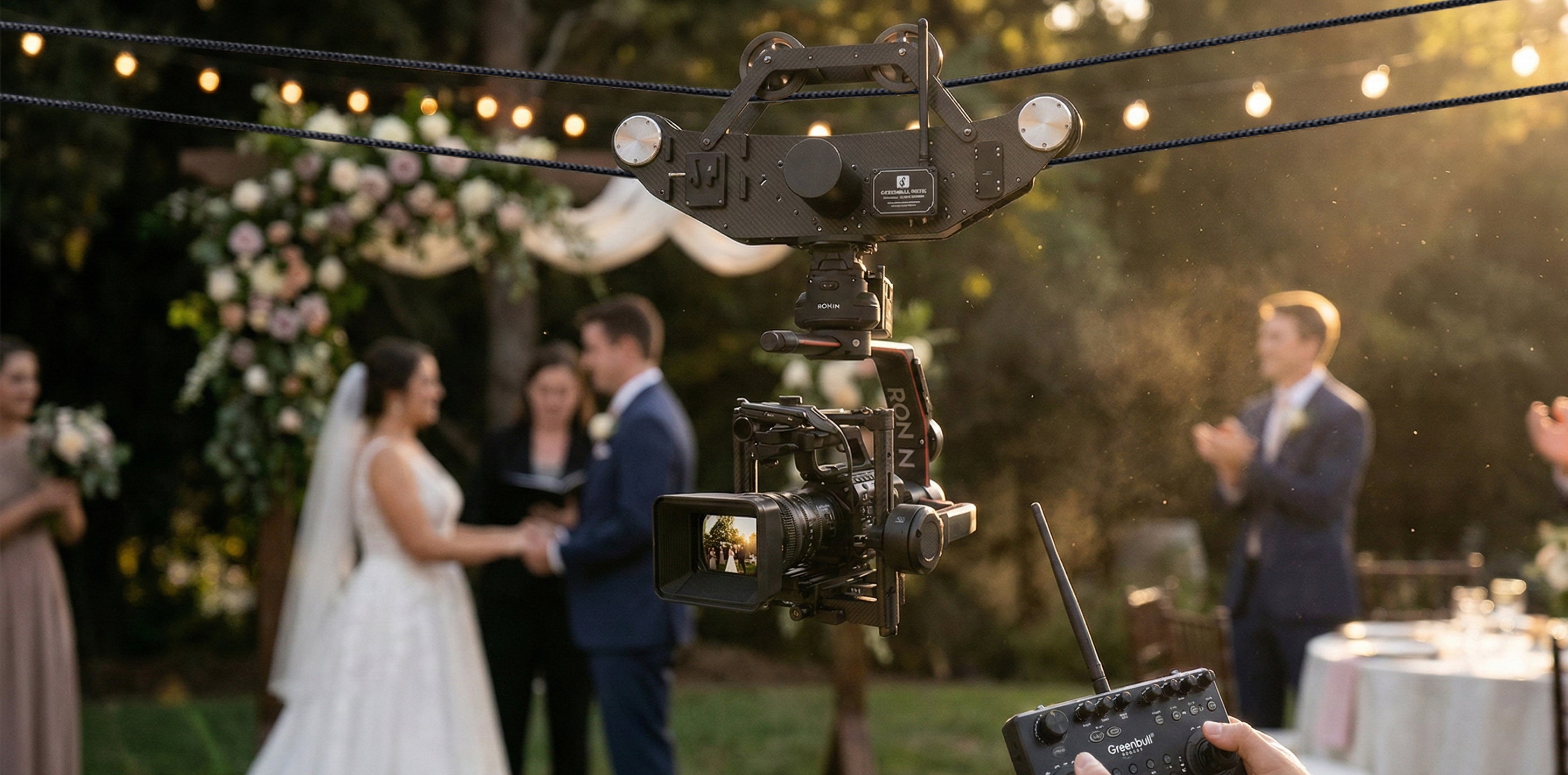

It is widely used in aerial perspective presentations of live events, performing arts programs, sports competitions, concerts, music festivals, wedding banquets, and fashion shows.
Performing Arts
Sports
Music Festival
Movies and TV shows
Outdoor reality show
