XT50 Remote controlled Track Camera System

XT50 Remote controlled Track Camera System

$8,570.00 USD

Sale Sold out

Lightweight & portable, quick on-site deployment.
High compatibility with native protocols of DJI and Sony mirrorless cameras.
Wireless & wired dual control, ultra-long stable remote control.
AB limit stops, 4 preset positions, synchronous cruise & intelligent tracking.
Long endurance + diverse control options.

Select Option

XT50 Package

USD $8,570.00

In Stock

XT50 Slider Car + RC303 Multifunctional Remote Control + 2nd Generation Mirrorless/Camera Remote Control + Carrying Bag for Slider

1m Straight rail

USD $343.00

In Stock

1m/section, a tensioner for each section

Rail roller portable bag (Compatible with 10 straight rail sections)

USD $571.00

In Stock

Rail roller portable bag（Compatible with 10 straight rail sections）

15cm Blade column

USD $857.00

In Stock

15cm Blade column,Used for hidden deployment of stage

20cm Blade column

USD $857.00

In Stock

20cm Blade column,Used for hidden deployment of stage

Telescopic pole (0.6-1 meter)

USD $1,143.00

In Stock

Extensible height: 0.6–1 meter, equipped with one carrying bag for the telescopic pole.

In Stock

USD $8,570.00

Deep Dive

High-load, long-endurance intelligent track

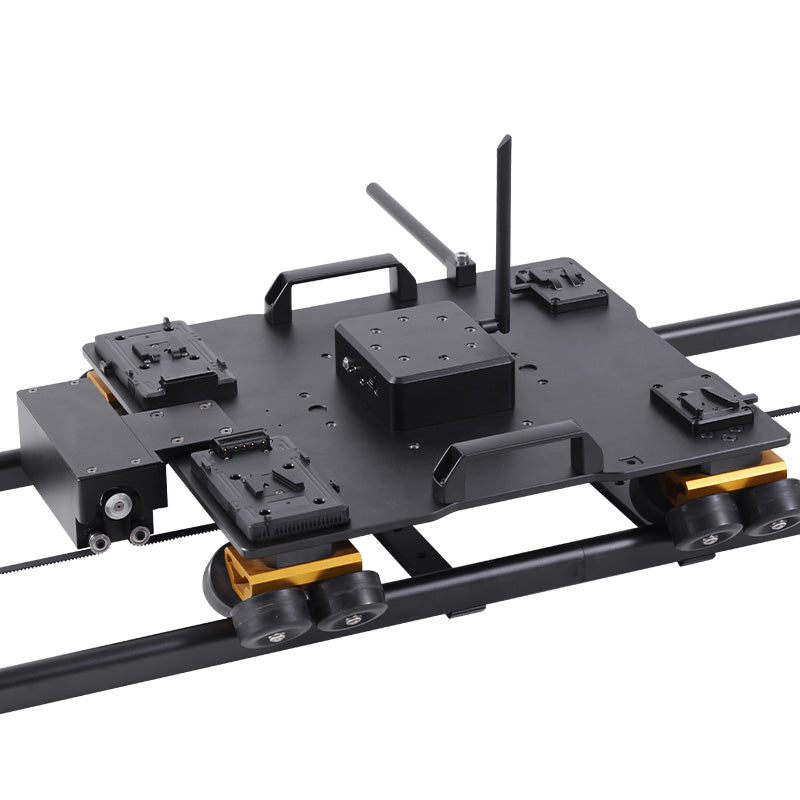

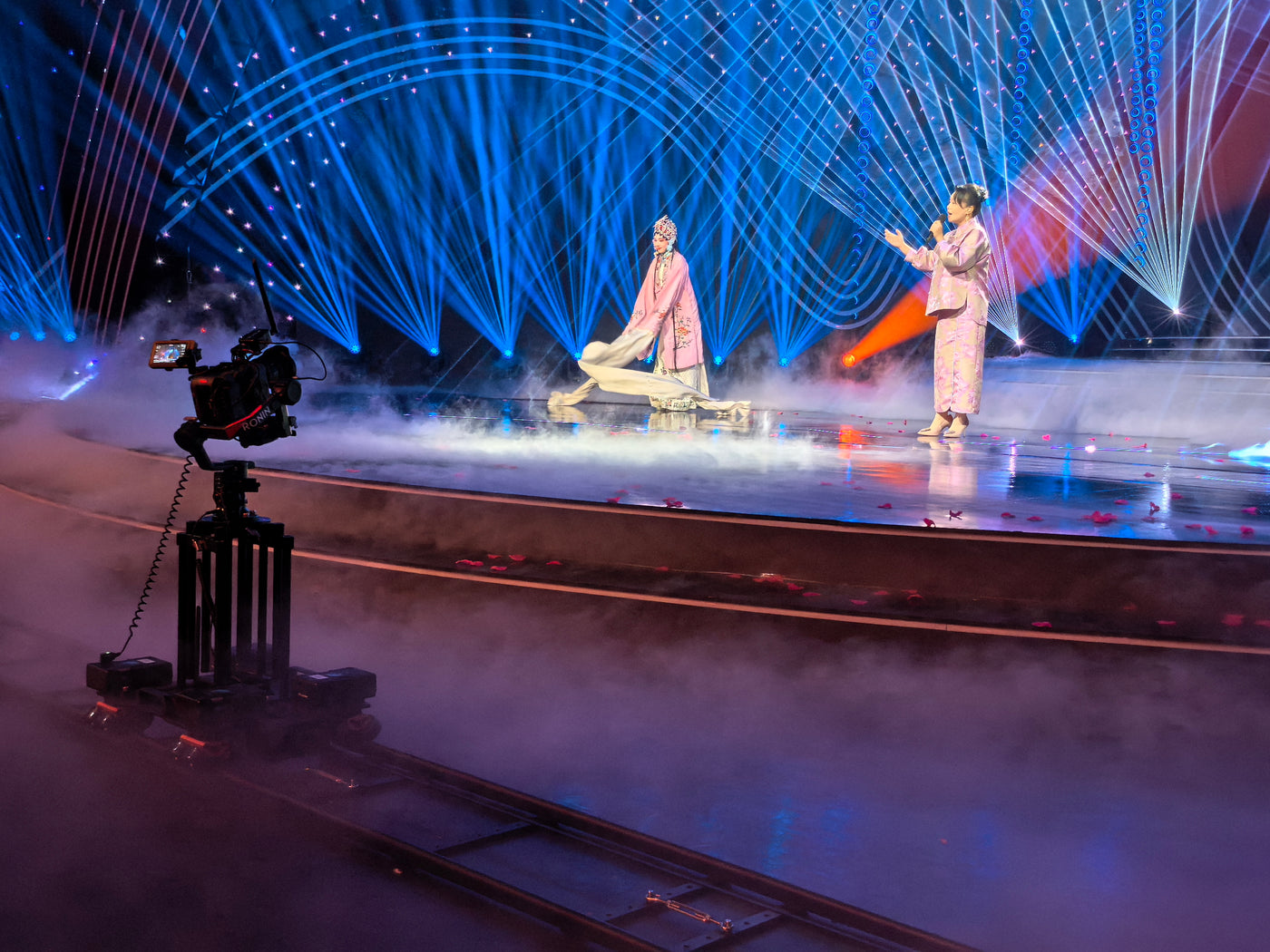

The XT50 is a column-type remote-controlled track shooting system. Paired with a motorized dolly, DJI gimbal stabilizers and professional cameras, it delivers 20kg payload, 4 preset points, full camera remote control and DJI intelligent tracking. Compact, portable and easy to operate, it creates smooth cinematic shots for live events, concerts, sports, festivals and reality shows.

Learn More

XT50 Packing List

XT50 dolly × 1

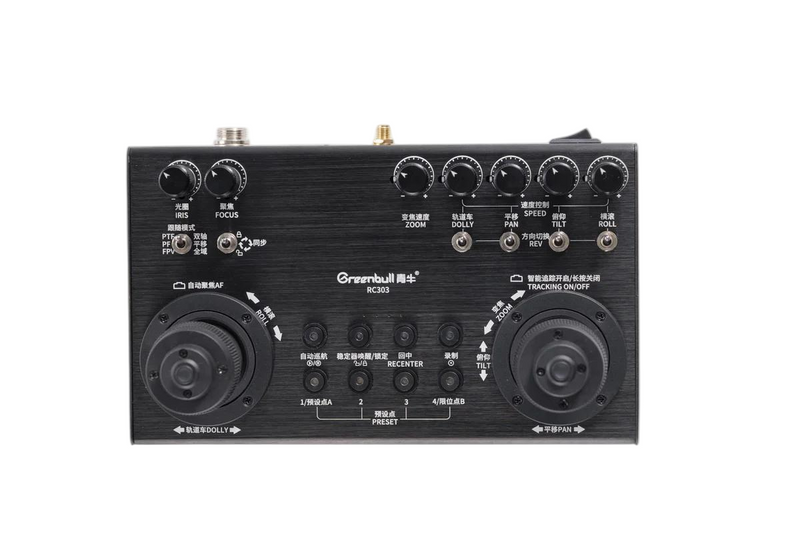

RC303 Multi-function Remote Control × 1

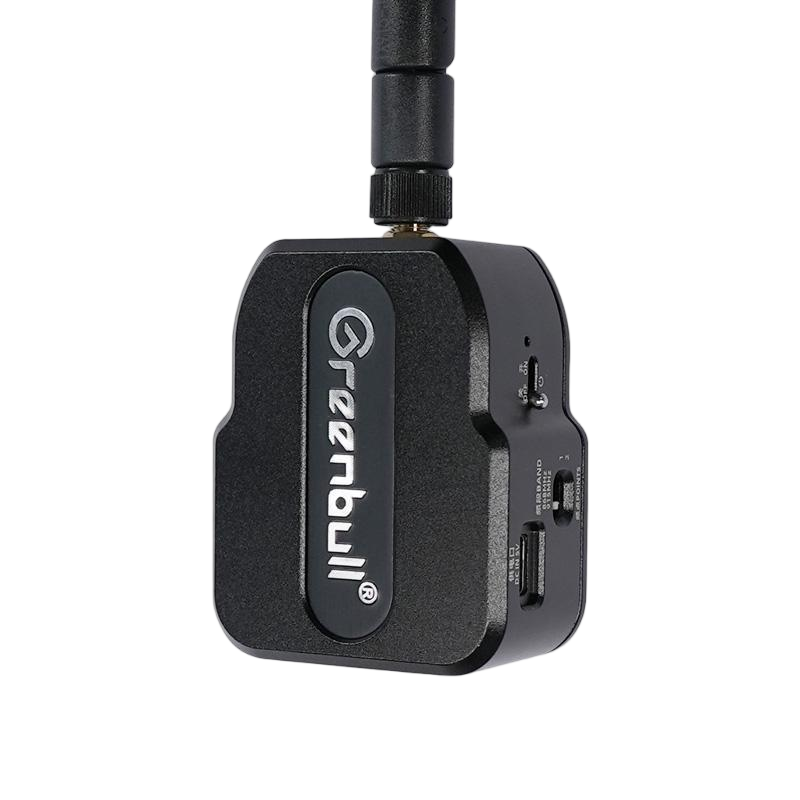

Second-generation camera controller × 1

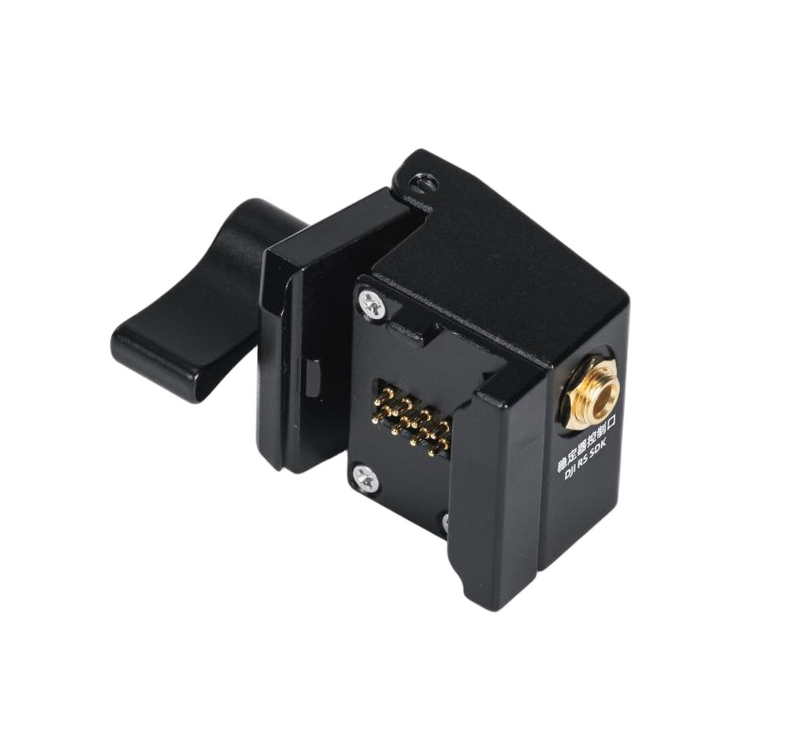

Communication Interface Adapter × 1

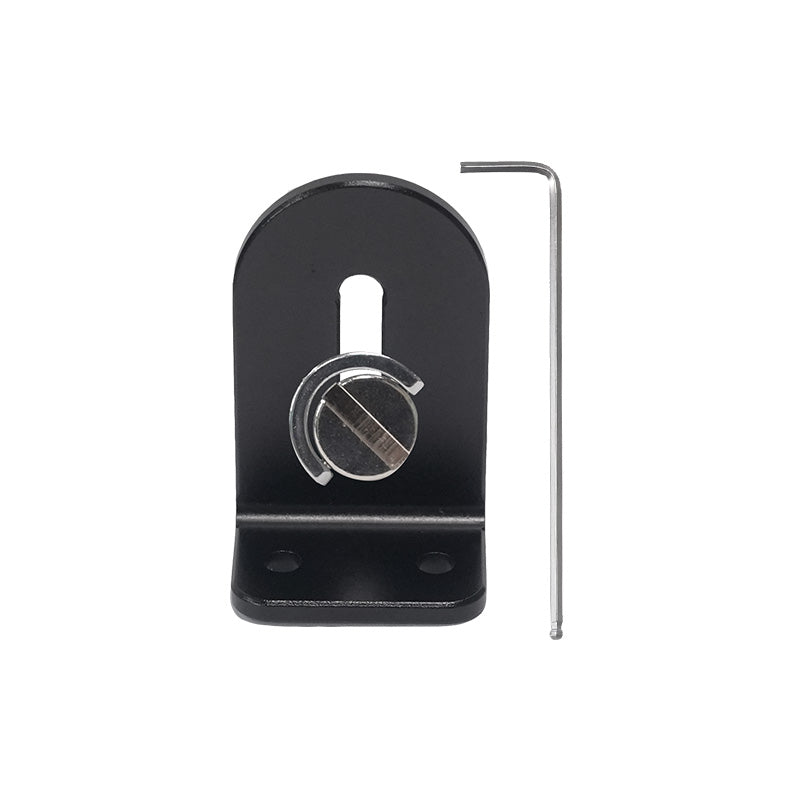

L-shaped mounting accessories, screws, and tools × 1

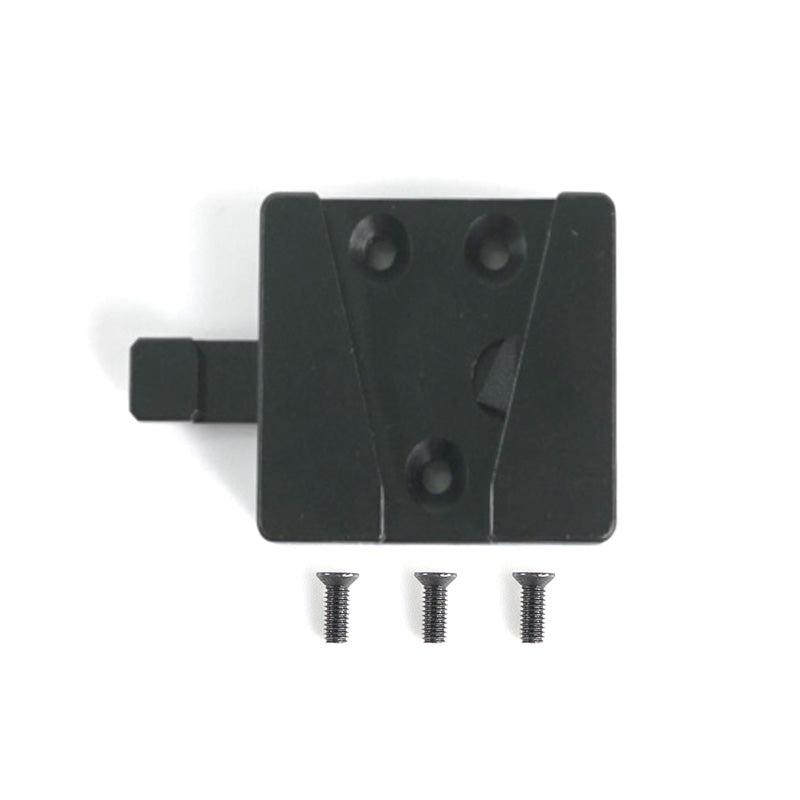

V bucket, mounting screw and wrench × 1

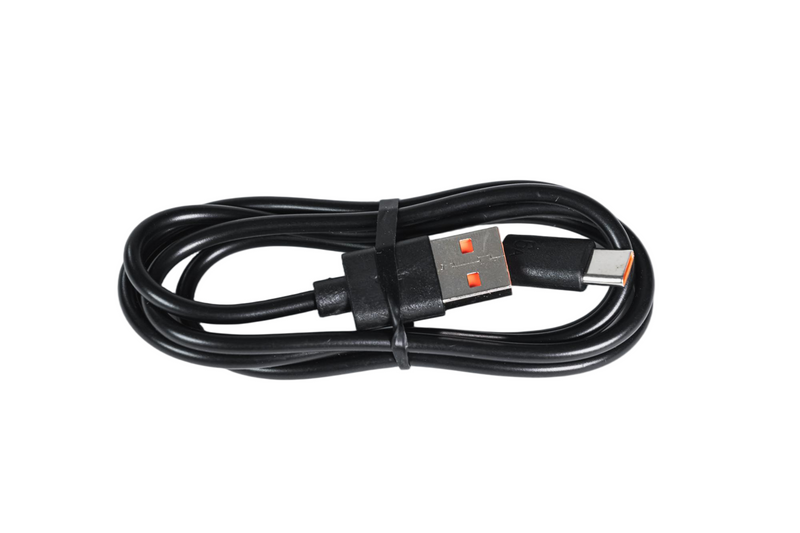

USB to Type-C power cable × 1

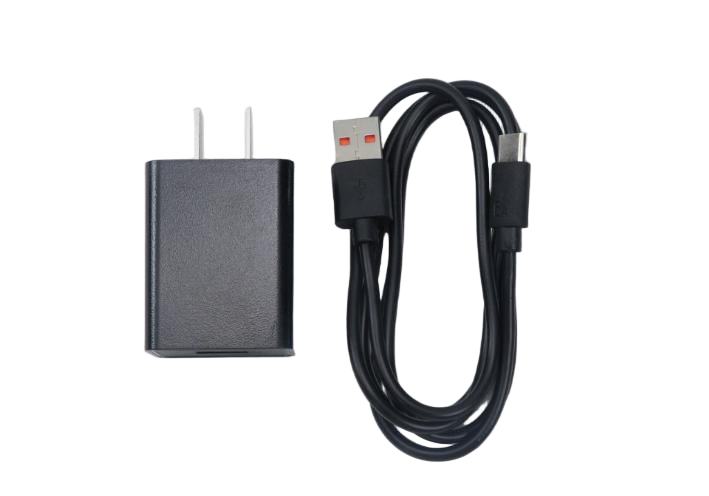

5V Adapter and Power Cord × 1

Antenna × 3

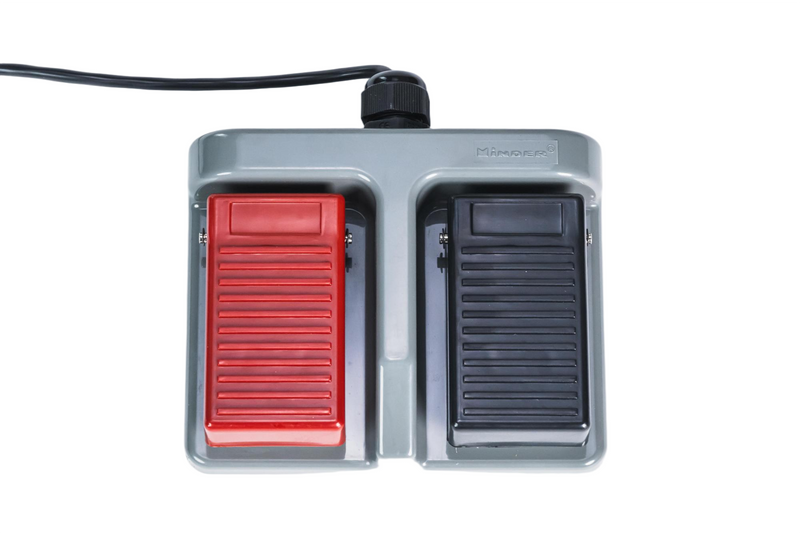

Pedal control × 1

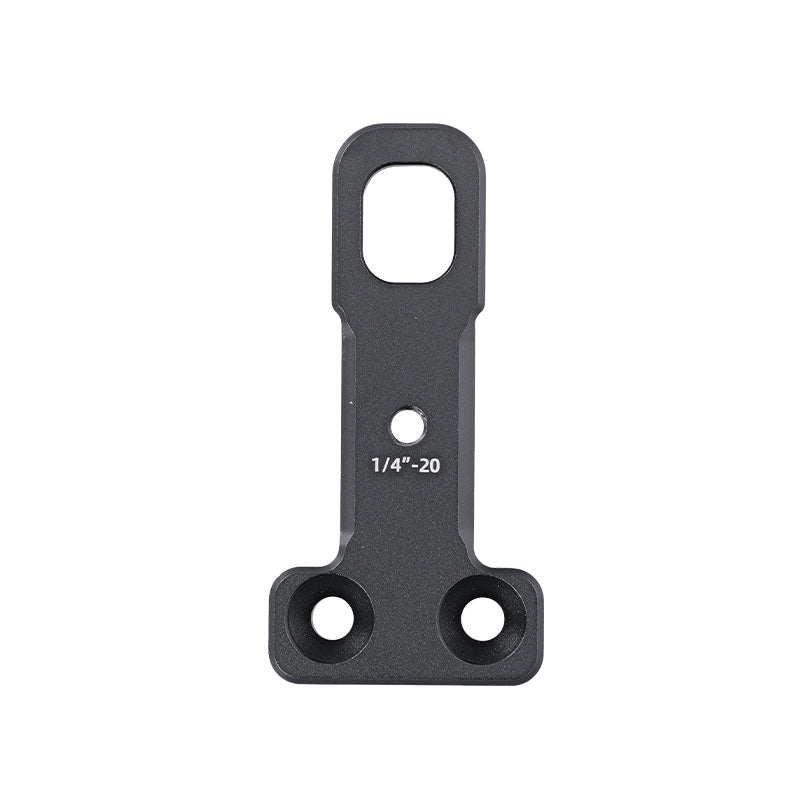

Reinforcing rod and screws（Applicable to RS4 PRO/RS3 PRO/RS2）） × 1

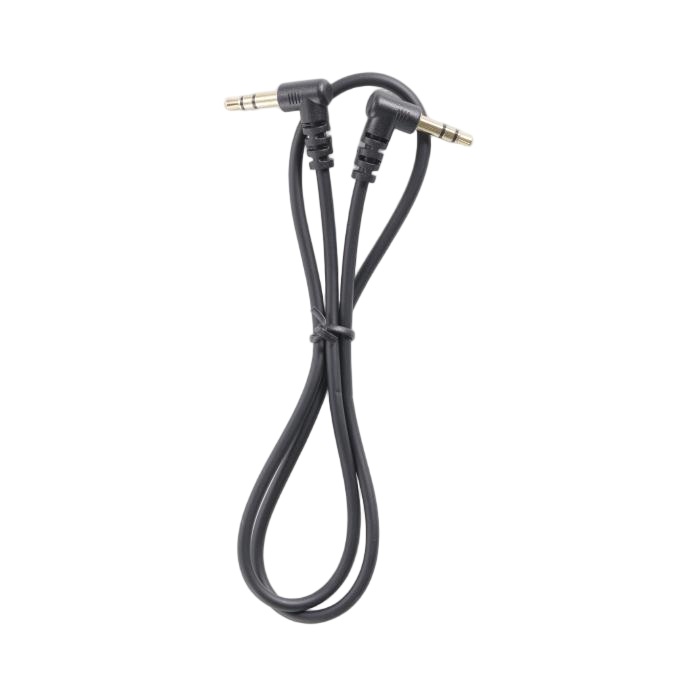

⏀3.5mm Stabilizer control line × 2

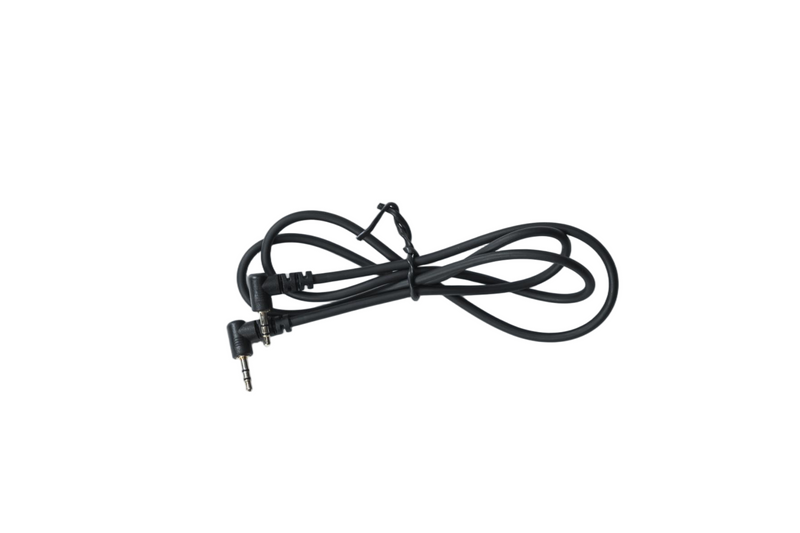

⏀2.5mm Video camera remote control cable × 2

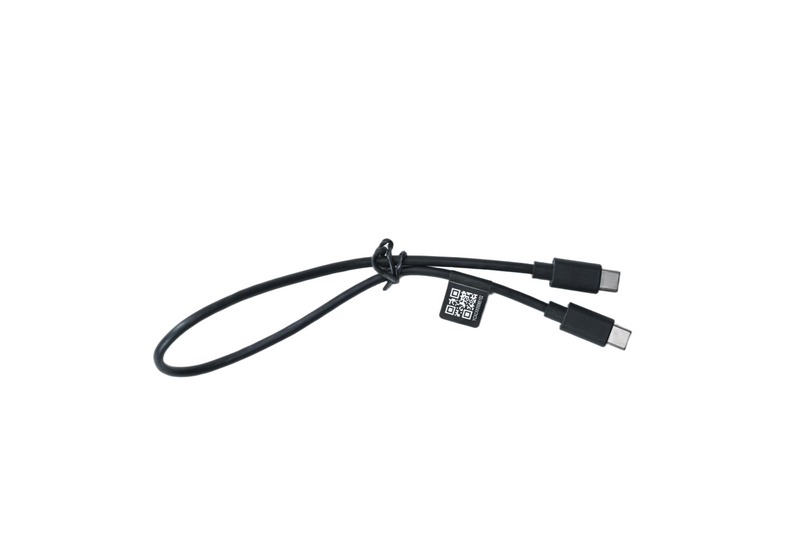

Type-c Camera control cable × 2

Type-C power cable × 2

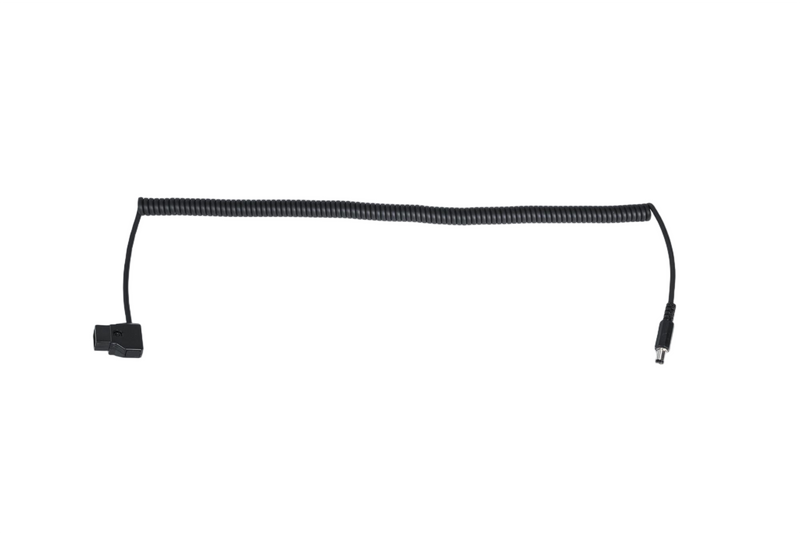

D-TAP to DC spring-loaded power cable × 1

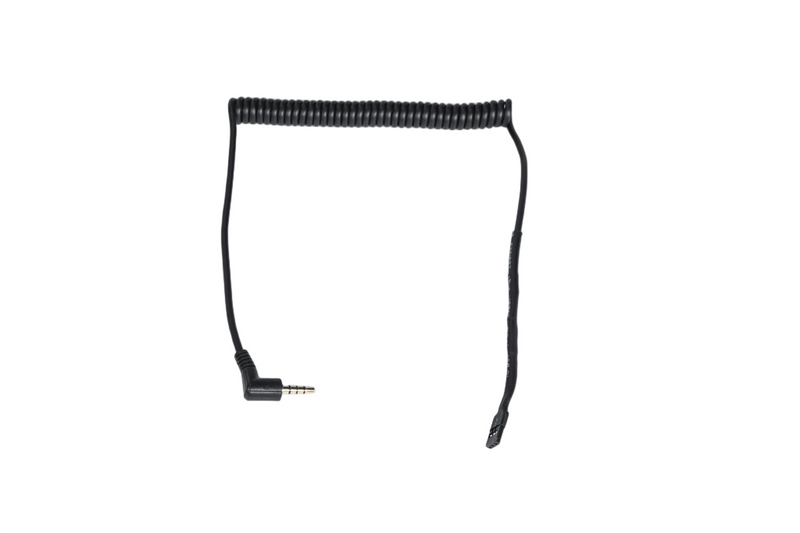

D.BUS DJI Ronin 2 Control Cable × 1

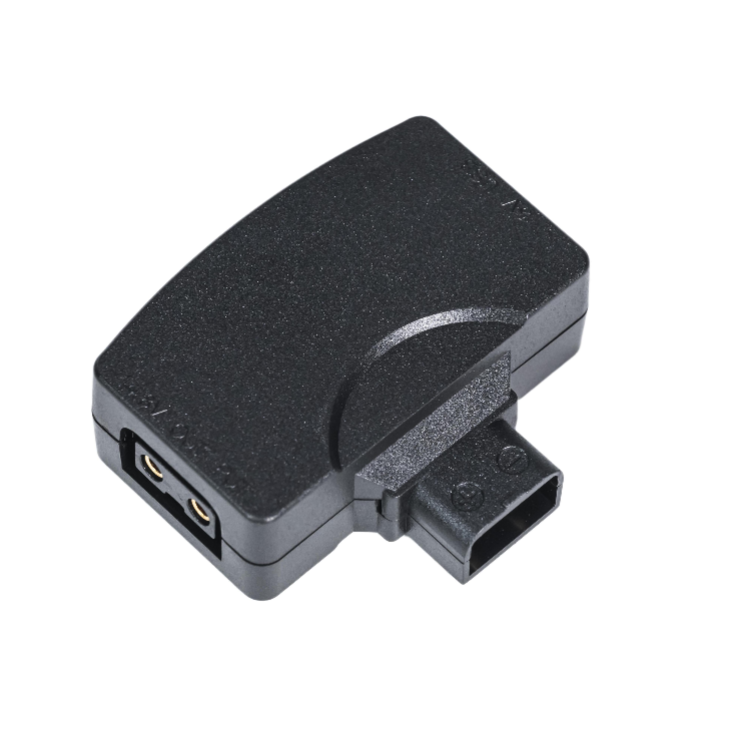

D-TAP to 5V USB Adapter × 1

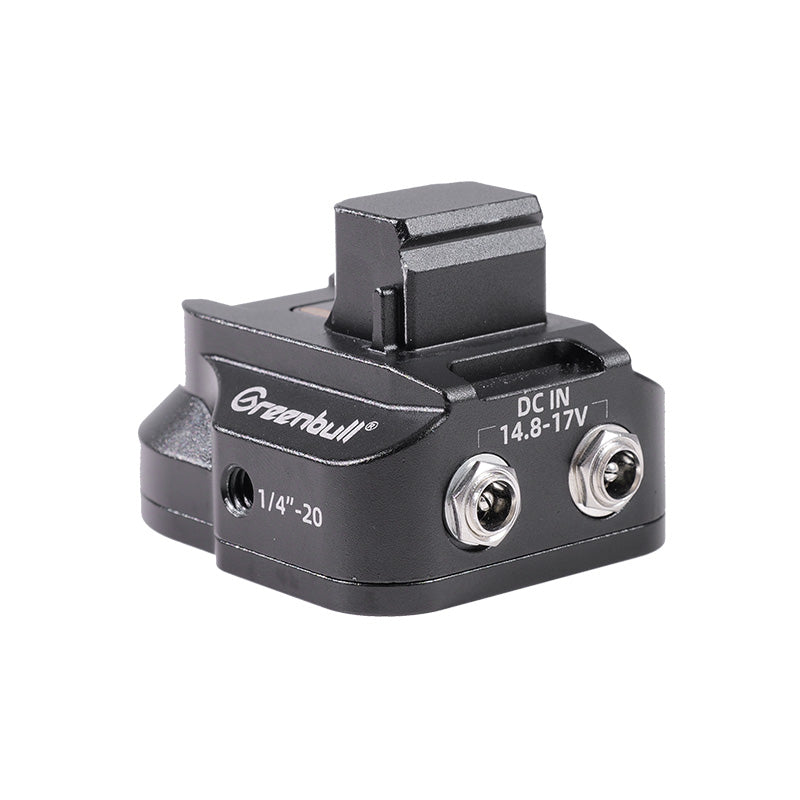

Stabilizer power supply base and screws × 1

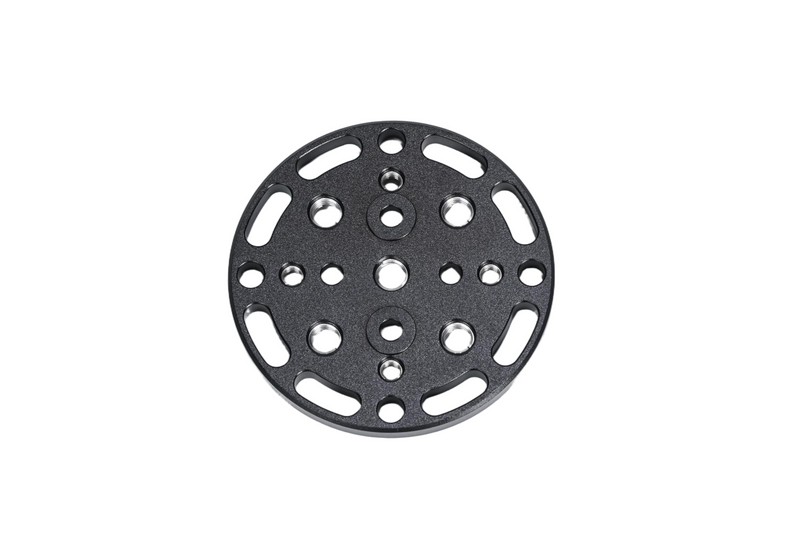

Round mounting plate and screws × 1

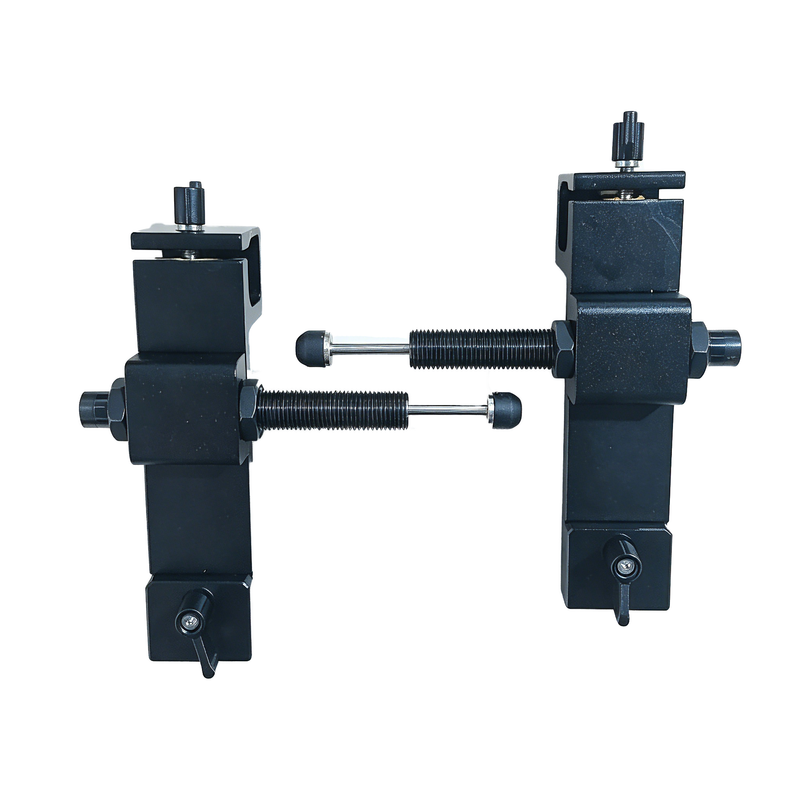

Hydraulic spring safety stopper × 2

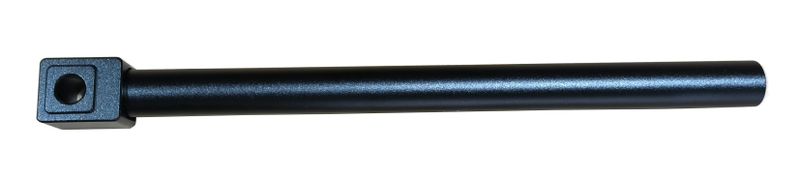

Cable extender pole and mounting screws, wrench × 1

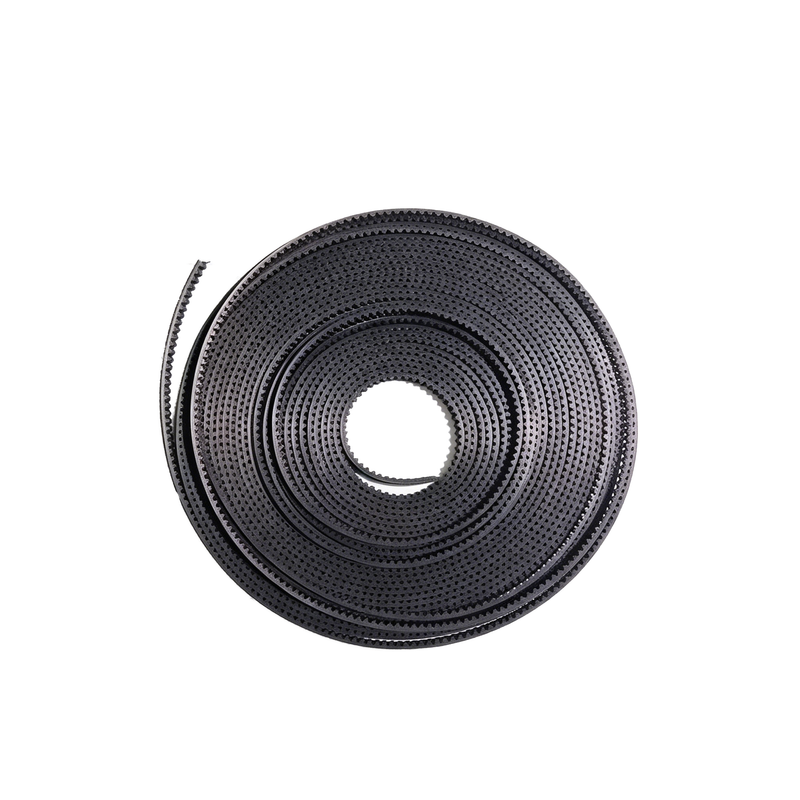

Synchronous belt × 2

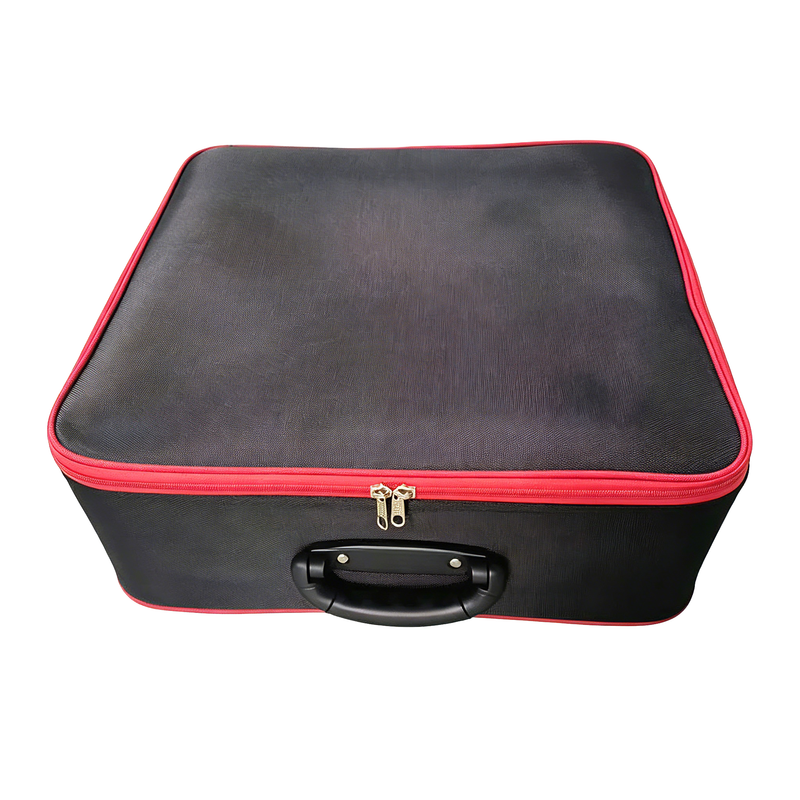

Portable bag × 1

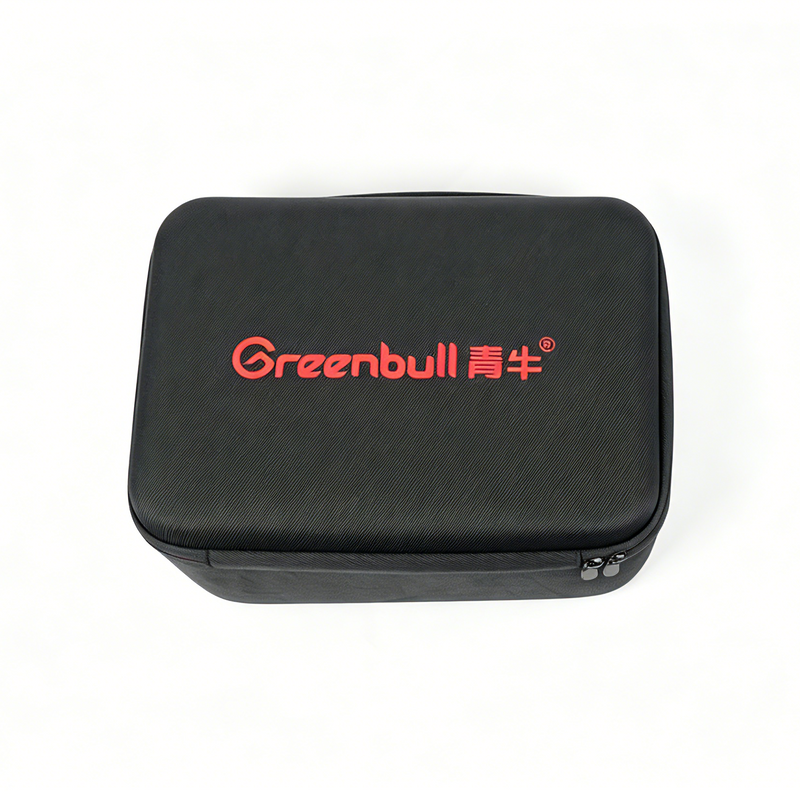

Remote control carrying case × 1

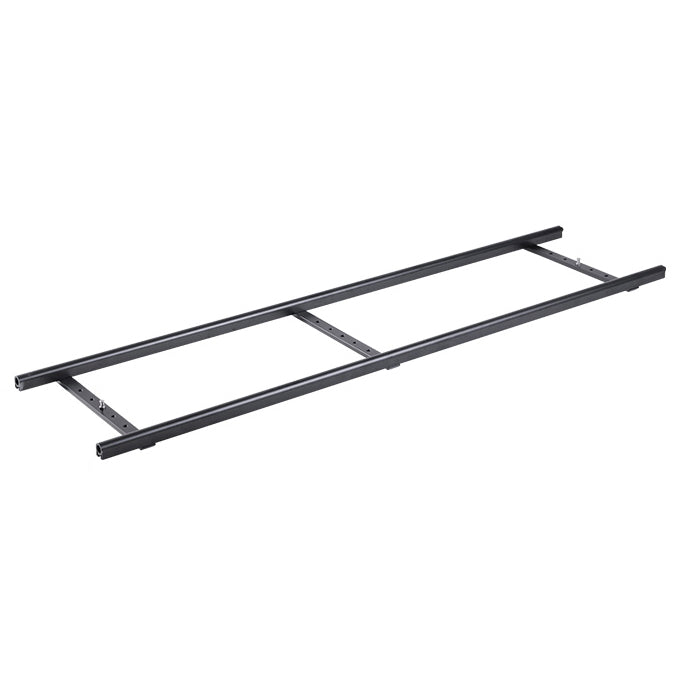

1M Straight rail

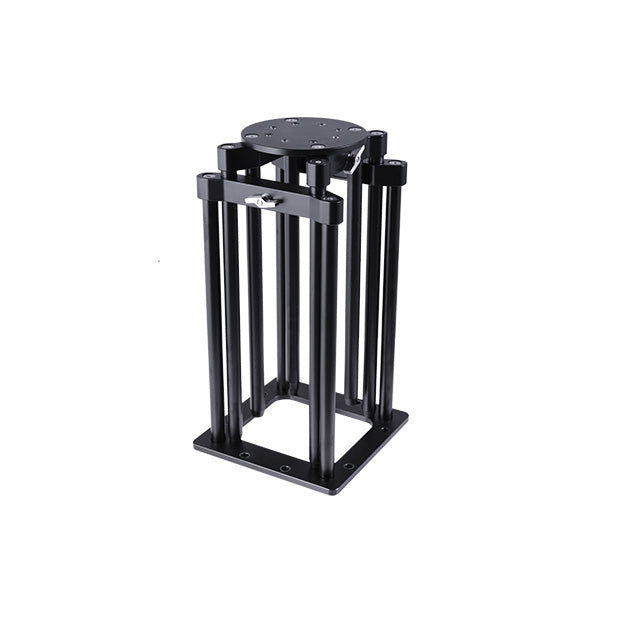

1M telescopic column（Adjustable height 0.42-1meters）

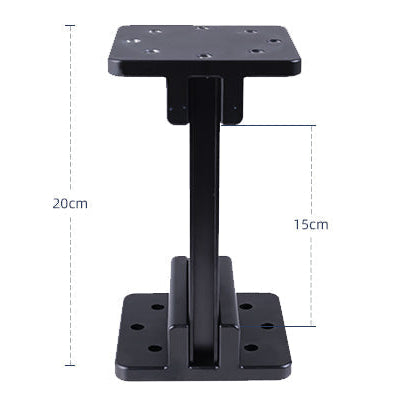

Blade column 20cm high/15cm high

1m telescopic column portable bag

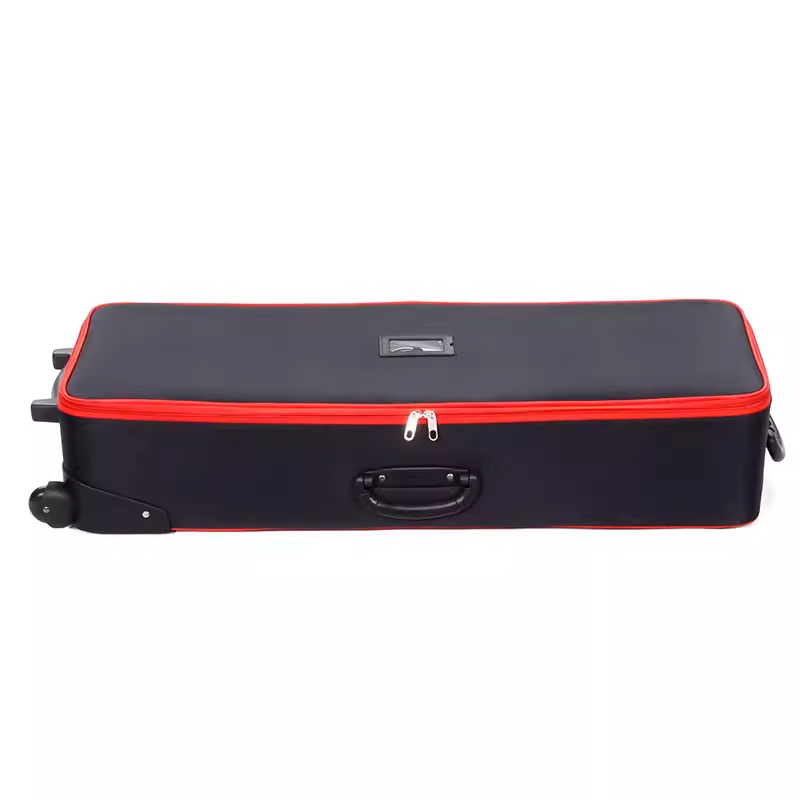

Rail roller portable bag（Each bag can hold 10 rails）

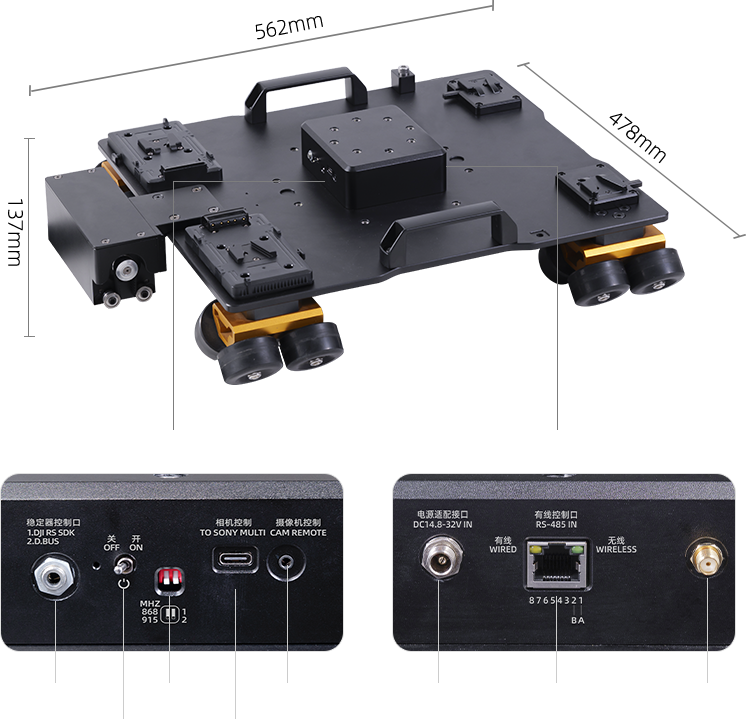

DOLLY

Name	Parameter
Dimension	562x478x137mm (LxWxH)
Unloaded weight	About 16.5kg
Effective load	≤20kg
Speed range	≤2m/s
Operating voltage	DC29.6V
Power interface	V battery holder (track car and stabilizer can be powered separately)
Battery life	≥4h (14.8V-130Wh-V lithium battery for vidicon, should be otherwise purchased)
Control interface of stabilizer	Φ3.5mm jacket (DJI RS SDK)
Wireless frequency band	868/915MHZ (2 frequency points are switchable in each frequency band); ≥100m in the open air
Wired control	RS485 (RJ-45)
Adaptive stabilizer	DJI Ronin 2, RS4 PRO, RS4, RS3 PRO, RS2

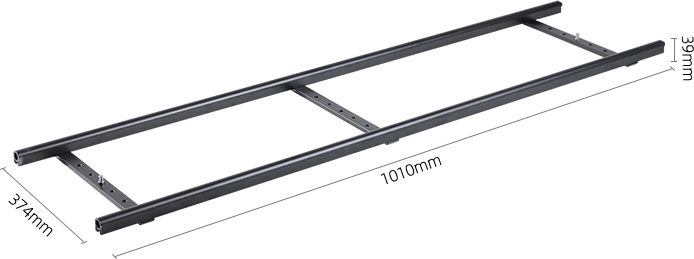

SPECIFICATIONS

Name	Parameter
Material	Aluminum alloy, black anodizing
Dimension	1010x374x39mm (LxWxH)
Track gauge	350mm
Weight	2.05kg

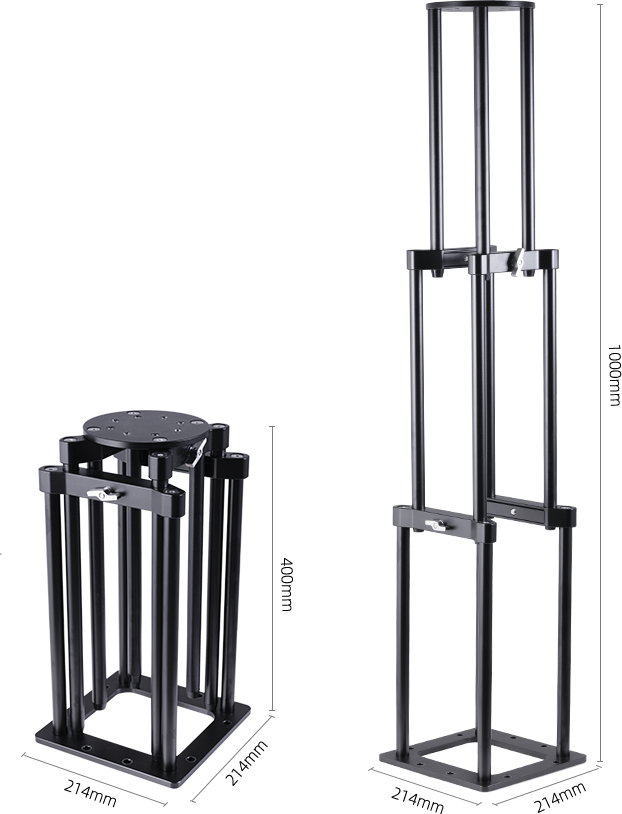

SPECIFICATIONS

Name	Parameter
Material	Aluminum alloy, blank anodizing
Dimension	214x214x400mm (L xW x H)
Weight	5.4kg
Adaptive stabilizer	DJI Ronin 2, RS4 PRO, RS4, RS3 PRO, RS2

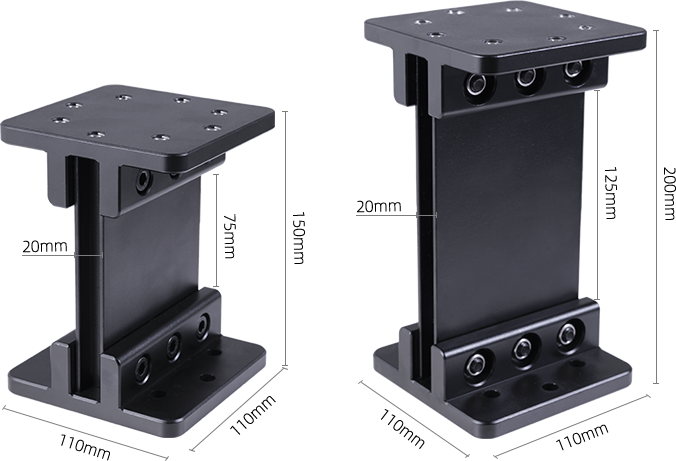

SPECIFICATIONS

Name	Parameter
Material	Aluminum alloy, black anodizing
Dimension	Long column: 110x110 x200 mm (L xW xH); Short column: 110x110 x150 mm (L xW xH)
Weight	Long column: 1.86kg; Short column: 1.65kg
Adaptive stabilizer	DJI Ronin 2, RS4 PRO, RS4, RS3 PRO, RS2

Compare Models

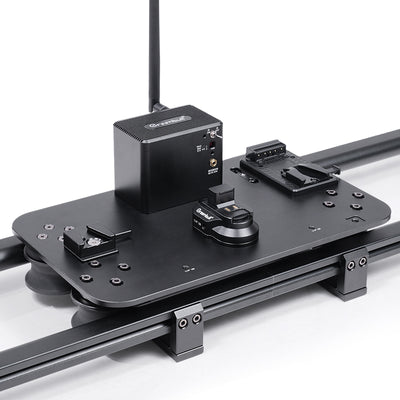

Model	XT5 Smart Pro+ $171.00 Buy Now	XT50 $343.00 Buy Now
Payload (Including Gimbal)	≤ 6kg	≤ 20kg
Speed Range	≤ 2 m/s	≤ 2 m/s
Operating Voltage	DC 14.8V	DC 29.6V
Power Interface	2× V-Mount Battery Plates \| (1 for gimbal + 1 for dolly independent power supply)	4× V-Mount Battery Plates \| (2 for gimbal + 2 for dolly independent power supply)
Remote Controller	RC303 Multi-Function Remote with 3D Joystick	RC303 Multi-Function Remote with 3D Joystick
Remote Control Method	Wireless (915MHz: 4 channels; open area ≥ 100m) \| Wired (RS485: RJ45; up to 1000m)	Wireless (915MHz: 4 channels; open area ≥ 100m) \| Wired (RS485: RJ45; up to 1000m)
Dolly Control	Stepless Speed Control: \| 1. Joystick \| 2. Foot Controller \| 3. Auto Cruise	Stepless Speed Control: \| 1. Joystick \| 2. Foot Controller \| 3. Auto Cruise
Gimbal Power Base	Yes	Yes
Compatible Gimbals	DJI RS5, RS4 Pro, RS4, RS3 Pro, RS2	DJI R2, RS5, RS4 Pro, RS4, RS3 Pro, RS2
DJI Ronin 2 (R2) Gimbal Control (D-BUS Protocol)	No	Pan, Tilt, Roll, Home Position Reset
Gimbal Control (DJI RS SDK Protocol)	3-Axis Attitude Control / Direction Switch / Speed Adjustment / Home Position / Lock / Wake-Up / Follow Mode Switch / Multi-Axis Sync	3-Axis Attitude Control / Direction Switch / Speed Adjustment / Home Position / Lock / Wake-Up / Follow Mode Switch / Multi-Axis Sync
Pre-Set Key Positions	4 (AB Limit Points + 2 Presets)	4 (AB Limit Points + 2 Presets)
DJI RS Smart Tracking Module Control	Activate / Deactivate / Framing \| *For DJI RS4 Pro / RS4	Activate / Deactivate / Framing \| *For DJI RS4 Pro / RS4
DJI RS Focus Motor Control	Zoom Control	Zoom Control
Camera Controller	2nd Generation Mirrorless / Cinema Camera Controller \| Integrated Sony mirrorless control protocol, supporting aperture, focus, zoom, recording, etc., for models such as FX3, FX30 \| Integrated DJI gimbal control protocol, compatible with RS5, RS4 Pro, RS4, RS3 Pro, RS2	2nd Generation Mirrorless / Cinema Camera Controller \| Integrated Sony mirrorless control protocol, supporting aperture, focus, zoom, recording, etc., for models such as FX3, FX30 \| Integrated DJI gimbal control protocol, compatible with RS5, RS4 Pro, RS4, RS3 Pro, RS2
Cinema Camera Remote Control	Zoom / Zoom Speed, Focus, Aperture, Recording, etc. \| *For Sony FX6, Z200, Z90, etc.	Zoom / Zoom Speed, Focus, Aperture, Recording, etc. \| *For Sony FX6, Z200, Z90, etc.
Camera Remote Control (DJI RS Compatible Cameras)	Aperture, Shutter, ISO, Recording, Focus, etc. \| *For all cameras compatible with RS4 Pro, RS4, RS3 Pro, RS2; refer to DJI official website for specific models	Aperture, Shutter, ISO, Recording, Focus, etc. \| *For all cameras compatible with RS4 Pro, RS4, RS3 Pro, RS2; refer to DJI official website for specific models
Mirrorless Camera Remote Control	Aperture, Focus, Zoom, Recording \| For Sony FX3, FX30, etc. \| Zoom functions only available when used with power zoom lenses, e.g.: \| 1. FE 4/PZ 28–135mm Full-Frame Power Zoom Lens \| 2. FE 4/PZ 16–35mm Full-Frame Wide-Angle Power Zoom Lens \| 3. E 4/PZ 18–105mm Power Zoom Lens \| 4. E 4/PZ 10–20mm Ultra-Wide Power Zoom Lens	Aperture, Focus, Zoom, Recording \| For Sony FX3, FX30, etc. \| Zoom functions only available when used with power zoom lenses, e.g.: \| 1. FE 4/PZ 28–135mm Full-Frame Power Zoom Lens \| 2. FE 4/PZ 16–35mm Full-Frame Wide-Angle Power Zoom Lens \| 3. E 4/PZ 18–105mm Power Zoom Lens \| 4. E 4/PZ 10–20mm Ultra-Wide Power Zoom Lens
Foot Controller	Yes	Yes
Track Type	Optional: Straight or Curved Track	Optional: Straight Track
Telescopic Column	Optional (Height adjustable: 0.35–0.6m	Optional (Height adjustable: 0.4–1m)
Slider Column	No	Optional (Height: 15/20cm)
Telescopic High Legs	Optional (Height adjustable: 0.66–1.2m)	No

Camera Compatibility List

(Supports Bluetooth Shutter)

Sony	A9, A9 II, A9 III, A6400, A7R V, A7R IV, A7R III, A7M4, A7M III, A7S III, FX3, FX30, A1, A1 II, ZV-E1, ZV-E10, ZV-E10 II, A7CR, A7C, A7C II, A6100, A6700, RX100 VII
Canon	EOS R50, EOS R10, EOS R8, EOS R7, EOS R6, EOS R6 Mark II, EOS R5, EOS R50V, EOS R, EOS RP, G7X Mark 3, EOS M50, EOS M50 Mark II, EOS M6 Mark II, EOS 90D, EOS 200D II, EOS 800D, EOS 850D, EOS 6D Mark II
Nikon	Z5, Z5 II, Z7 II, Z6 II, Z6 III, Z50, Z50 II, Z30, Zfc, ZF
Panasonic	GH7, S1 M2, S1 M2 ES, S1 R2, S5 M2X

View full compatibility list >
