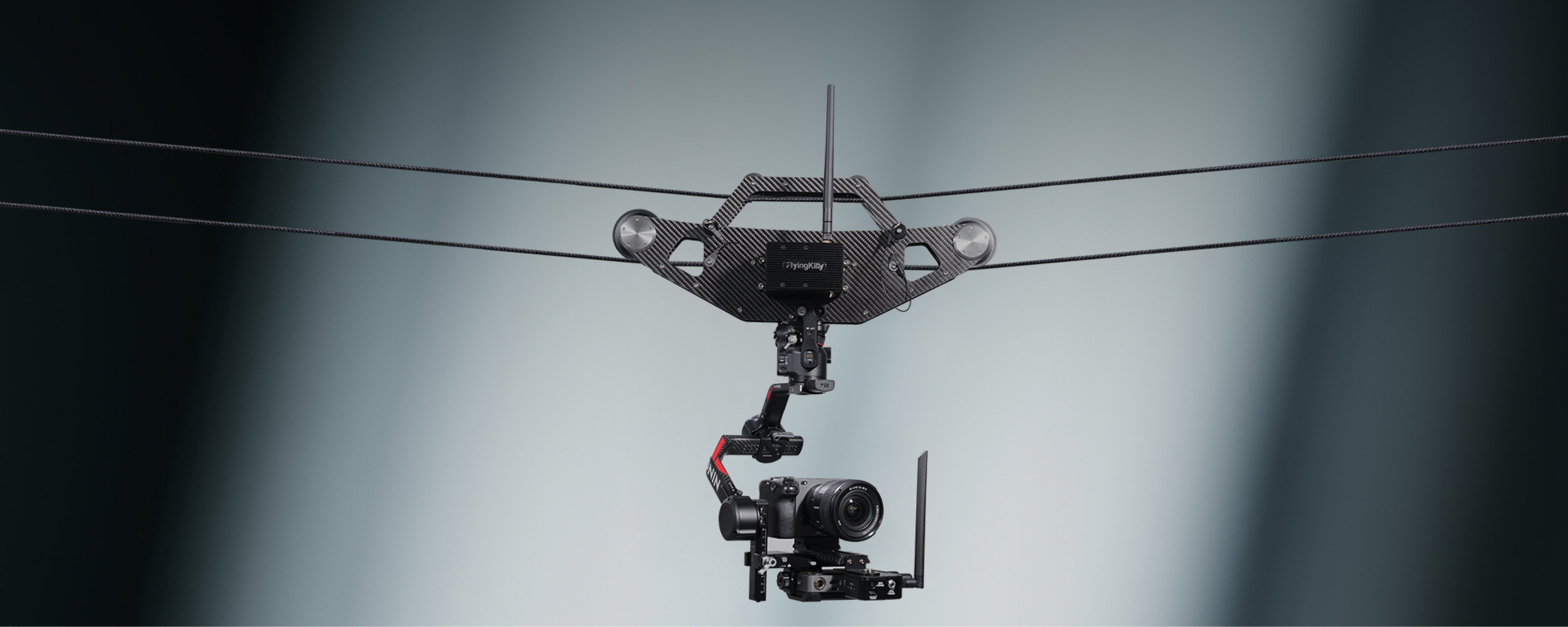

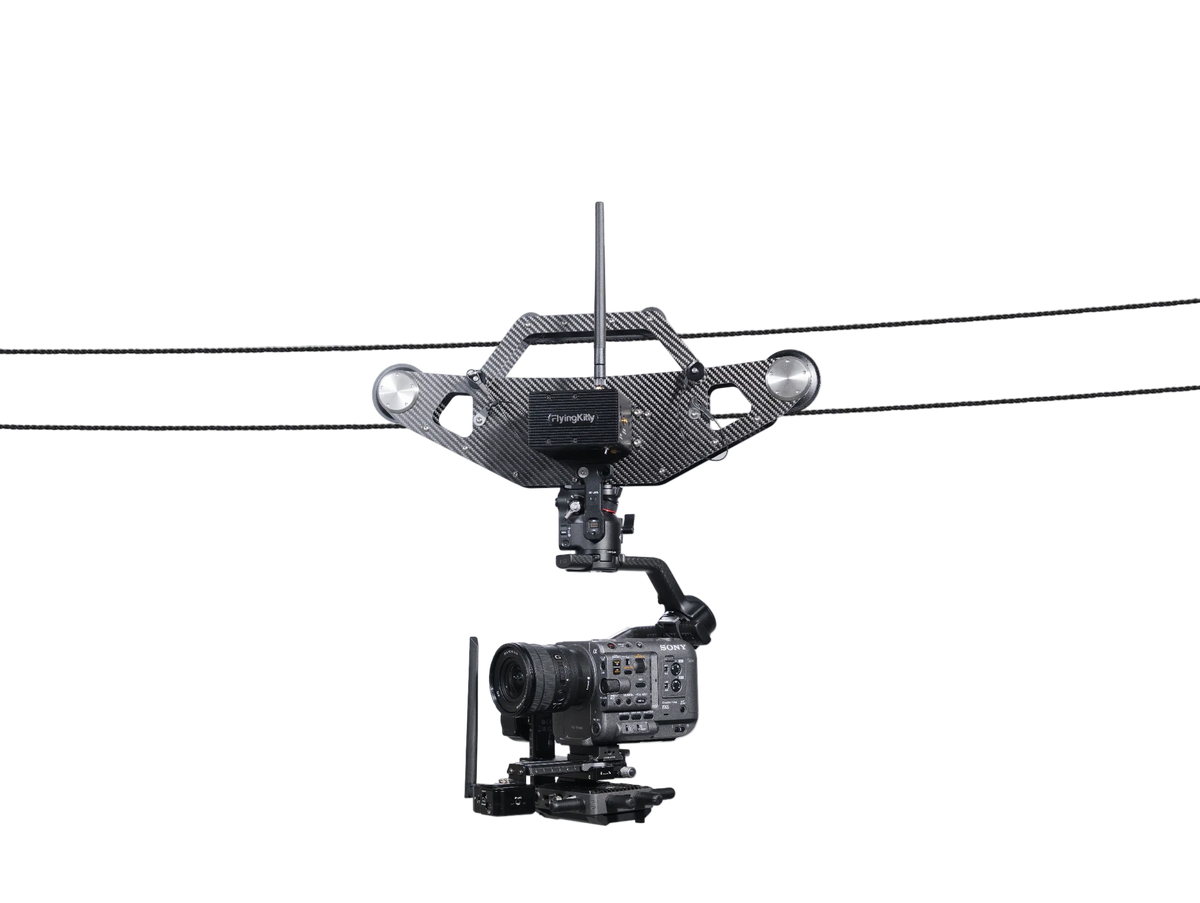

300M Φ5MM polymer fiber rope 6KG payload carbon fiber carriage, DJI RS SDK 3-axis stabilization, RC303 multi-function 3D joystick remote, 8-hour long endurance, DJI Smart Tracking, 4 pre-stored key positions, dual-cable safety design... FlyingKitty FM6 MAX is a game-changer for on-site aerial shooting, boasting cutting-edge integration that redefines professional cable cam versatility and elevates live imaging precision to unprecedented heights. This flagship cable shooting system is set to transform how you capture dynamic moments, breaking through spatial and regulatory limitations to unlock new creative horizons in live broadcasts, performances, sports events, and film productions.
Product Details
Explore the exquisite craftsmanship and innovative design details.

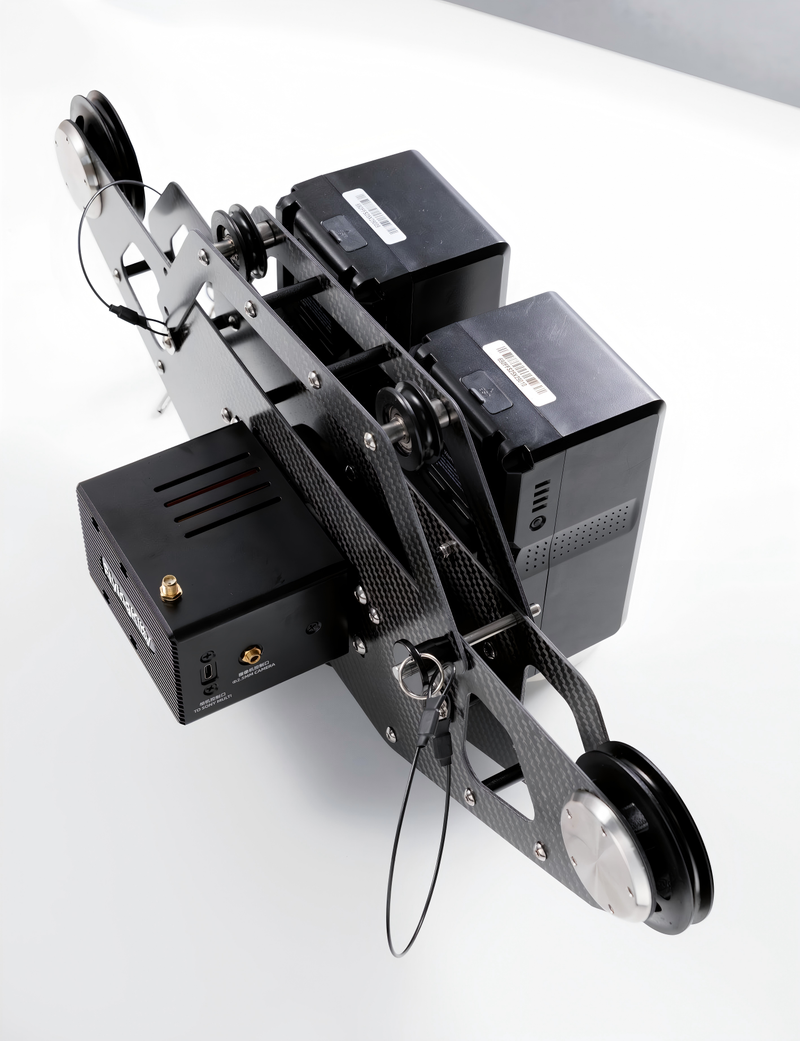

Carbon Fiber Cable Car
Made of carbon fiber, with 4 wheels, it is powered by a high-torque servo motor, offersprecise positioning, is silent and smooth, and has stepless speed regulation. It has certainclimbing and hovering capabilities, and its payload reaches 6 kg.

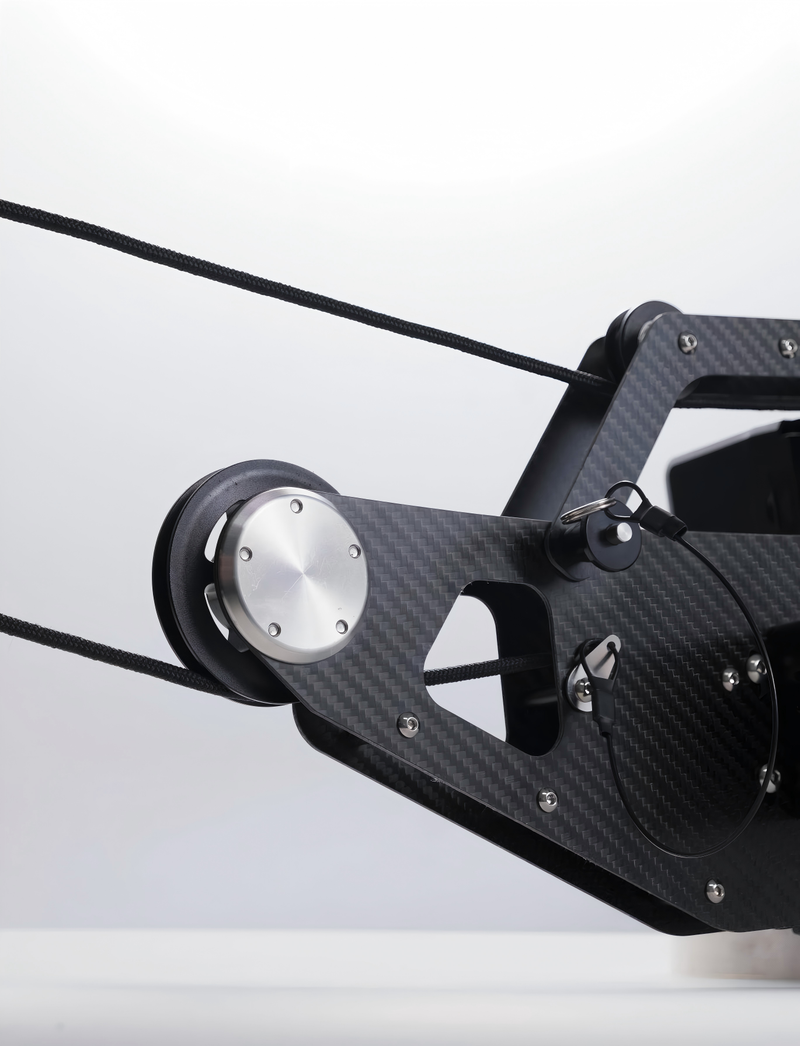

Double Ropeway Design
The double cableway design of main cableway plus safety cableway not only increases thesafety factor of the cable car, but also enhances stability.

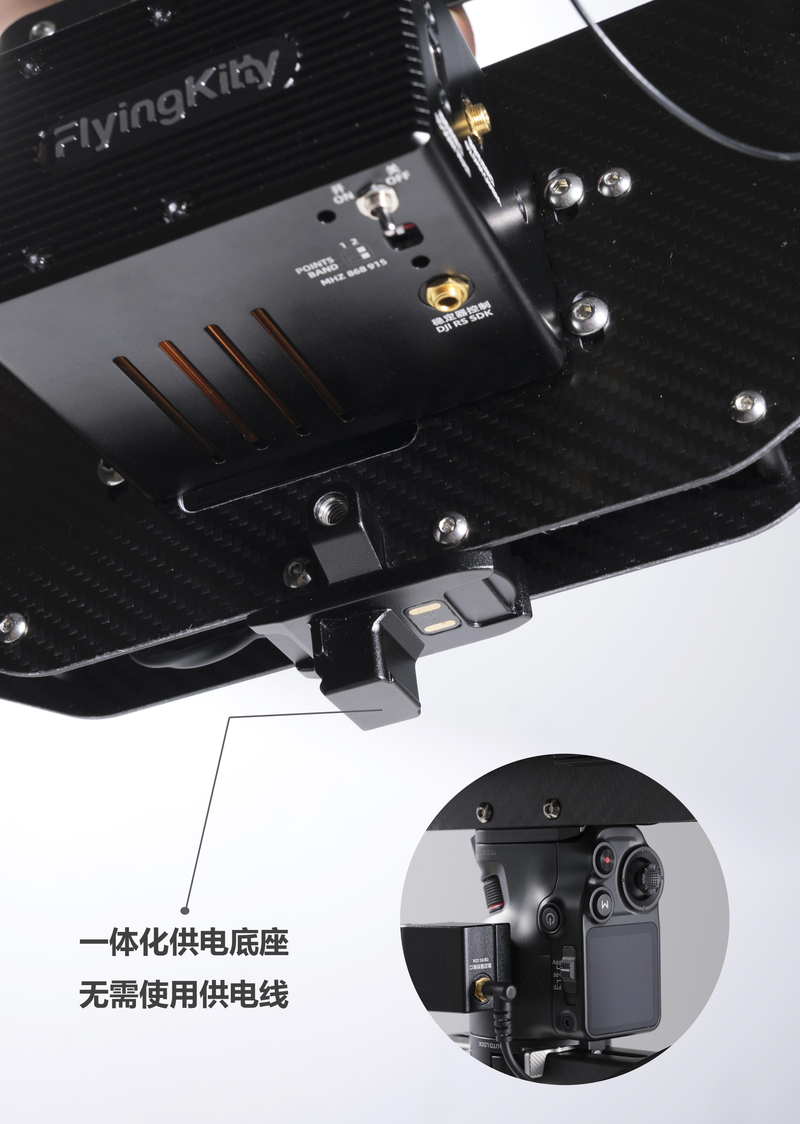

DJI Integrated Power Supply Base
An integrated gimbal power supply base compatible with the DJI RS2, RS3 Pro, RS4, and RS4 Pro(RS3 Pro and RS4 Pro are recommended). Simply install a V-mount lithium-ion battery to power thebase, allowing you to mount the gimbal and use it directly without the need for power cables.
Multi-function Remote Control
The FM6 MAX is equipped with the new RC303 multi-function remote controller with athree-dimensional joystick, which integrates the control of the cable car, stabilizer,camera/camcorder, and focus motor. It is designed in Chinese and English, and theoperation is simple, clear and easy to understand.

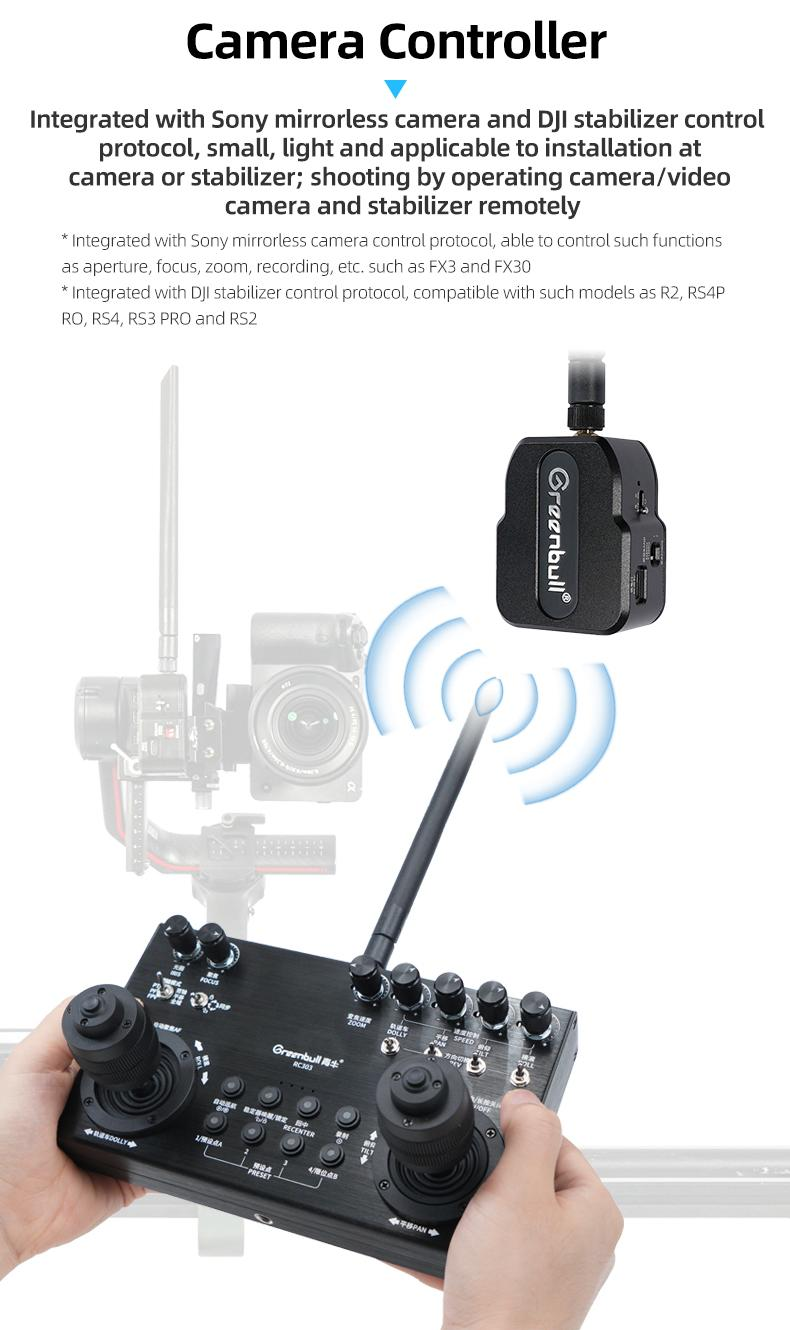

Camera Controller
Integrated with Sony mirrorless camera and Djl stabilizer control protocol, small, light and applicable to installation atcamera or stabilizer; shooting by operating camera/videocamera and stabilizer remotely.

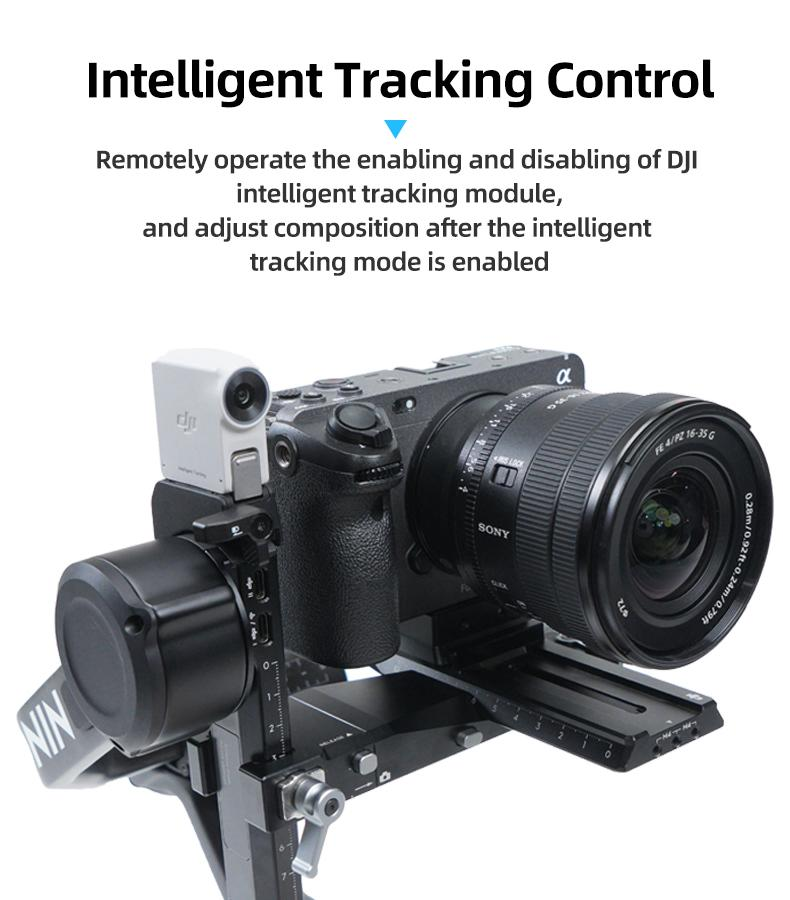

Intelligent Tracking Control
Remotely operate the enabling and disabling of DJI intelligent tracking module,and adjust composition after the intelligenttracking mode is enabled.
| Specification | FM6 III PRO | FM6 MAX | FM12 III PRO |
|---|---|---|---|
| Max Payload (Including Gimbal) | ≤ 6 kg | ≤ 6 kg | ≤ 12 kg |
| Speed Range | ≤ 2.8 m/s | ≤ 2.8 m/s | ≤ 5 m/s |
| Operating Voltage | 14.8V | 14.8V | 29.6V |
| Standard Cableway | 200m black fiber rope (Φ5mm) | 300m black fiber rope (Φ5mm) | 300m black fiber rope (Φ8mm) |
| Remote Controller | RC303 multi-function remote with 3D joystick | RC303 multi-function remote with 3D joystick | RC303 multi-function remote with 3D joystick |
| Control Method | Dual-band wireless | Dual-band wireless; Dual remote control system | Dual-band wireless; Dual remote control system |
| Power Supply Interface | 1 V-mount battery plate (powers both gimbal and cable car) | 2 V-mount battery plates; Separate power for gimbal and cable car | 3 V-mount battery plates; Separate power for gimbal and cable car |
| Independent Receiver | — | Independent 2nd-gen mirrorless/camera controller; Works with Sony mirrorless (e.g. FX3, FX30) to control aperture, focus, zoom, recording, etc.; Works with DJI gimbals (R2, RS4PRO, RS4, RS3 PRO, RS2) | Independent 2nd-gen mirrorless/camera controller; Works with Sony mirrorless (e.g. FX3, FX30) to control aperture, focus, zoom, recording, etc.; Works with DJI gimbals (R2, RS4PRO, RS4, RS3 PRO, RS2) |
| Cable Car Control | Stepless speed control + AB virtual limit + 2 presets + foot controller + auto cruise | Stepless speed control + AB virtual limit + 2 presets + foot controller + auto cruise | Stepless speed control + AB virtual limit + 2 presets + foot controller + auto cruise |
| Gimbal Power Supply Base | Split type | All-in-one type | Split type |
| Gimbal Control (DJI RS SDK Protocol) | 3-axis attitude control/direction switch/speed adjustment/reset/lock/wake-up; Follow mode switch; Cable car multi-axis sync | 3-axis attitude control/direction switch/speed adjustment/reset/lock/wake-up; Follow mode switch; Cable car multi-axis sync | 3-axis attitude control/direction switch/speed adjustment/reset/lock/wake-up; Follow mode switch; Cable car multi-axis sync |
| DJI RS Intelligent Tracking Module Control | — | *On/Off/Framing; For DJI RS 4 Pro / RS 4 | *On/Off/Framing; For DJI RS 4 Pro / RS 4 |
| R2 (DJI Ronin2) Gimbal Control (D-BUS Protocol) | Rotation, tilt, roll, reset, etc. | Rotation, tilt, roll, reset, etc. | Rotation, tilt, roll, reset, etc. |
| DJI RS Follow Focus Motor Control | Zoom mode; Motorized zoom for manual lenses | Zoom mode; Motorized zoom for manual lenses | Zoom mode; Motorized zoom for manual lenses |
| Camera Remote Control (DJI RS Compatible Cameras) | Aperture, shutter, ISO, recording, focus, etc.; For all DJI RS4PRO, RS4, RS3 PRO, RS2 compatible cameras (check DJI official site for details) | Aperture, shutter, ISO, recording, focus, etc.; For all DJI RS4PRO, RS4, RS3 PRO, RS2 compatible cameras (check DJI official site for details) | Aperture, shutter, ISO, recording, focus, etc.; For all DJI RS4PRO, RS4, RS3 PRO, RS2 compatible cameras (check DJI official site for details) |
| Mirrorless Camera Remote Control | Zoom/zoom speed, recording, auto focus, etc. (e.g. A7SIII, FX3, FX30); Zoom works only with electric zoom lenses | Aperture, focus, zoom, recording; For Sony models (e.g. FX3, FX30); Zoom works only with electric zoom lenses, such as: 1. FE 4/PZ 28-135 full-frame EZ lens 2. FE 4/PZ 16-35 full-frame wide-angle EZ lens 3. E 4/PZ 18-105 EZ lens 4. E 4/PZ 10-20 ultra-wide EZ lens | Aperture, focus, zoom, recording; For Sony models (e.g. FX3, FX30); Zoom works only with electric zoom lenses, such as: 1. FE 4/PZ 28-135 full-frame EZ lens 2. FE 4/PZ 16-35 full-frame wide-angle EZ lens 3. E 4/PZ 18-105 EZ lens 4. E 4/PZ 10-20 ultra-wide EZ lens |
| Camera Remote Control (LANC Protocol) | Zoom/zoom speed, focus, aperture, recording, etc. (e.g. Sony FX6, Z200, Z90) | Zoom/zoom speed, focus, aperture, recording, etc.; For Sony models (e.g. FX6, Z200, Z90) | Zoom/zoom speed, focus, aperture, recording, etc. (e.g. Sony FX6, Z200, Z90) |
Application Scenario
It is widely used in aerial perspective presentations of live events, performing arts programs, sports competitions, concerts, music festivals, wedding banquets, and fashion shows.
Performing Arts
Sports
Music Festival
Movies and TV shows
Outdoor reality show
