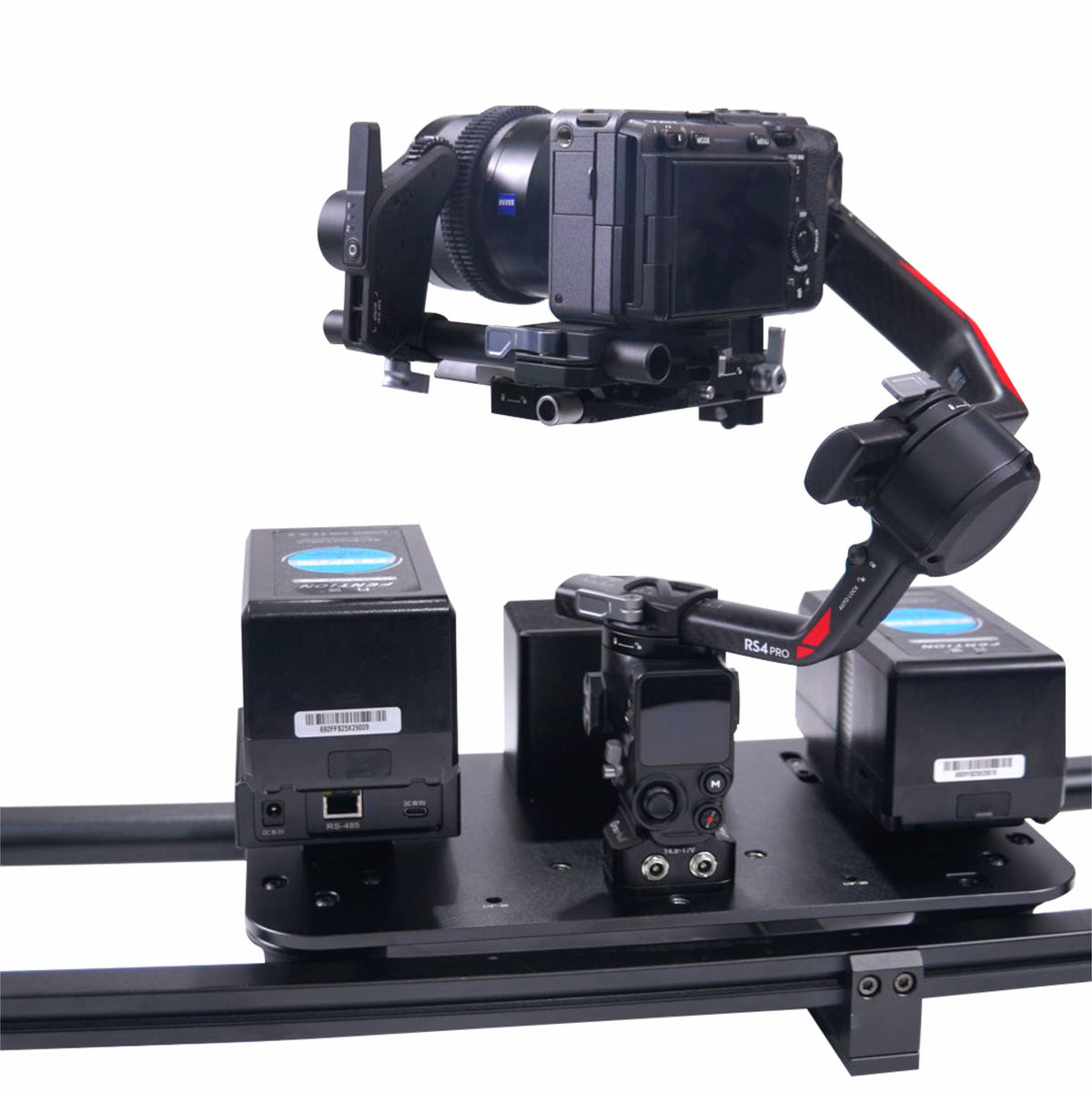

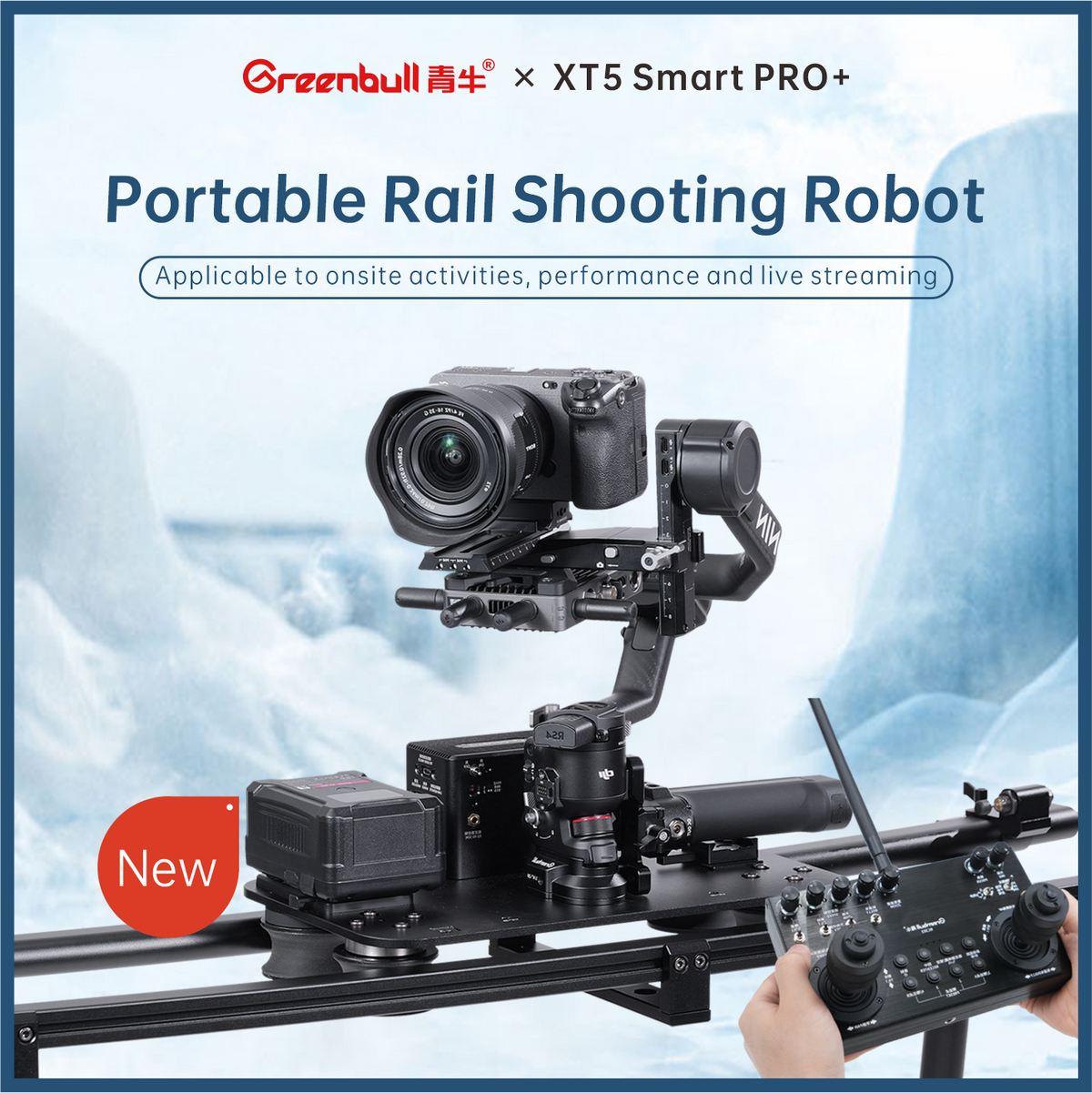

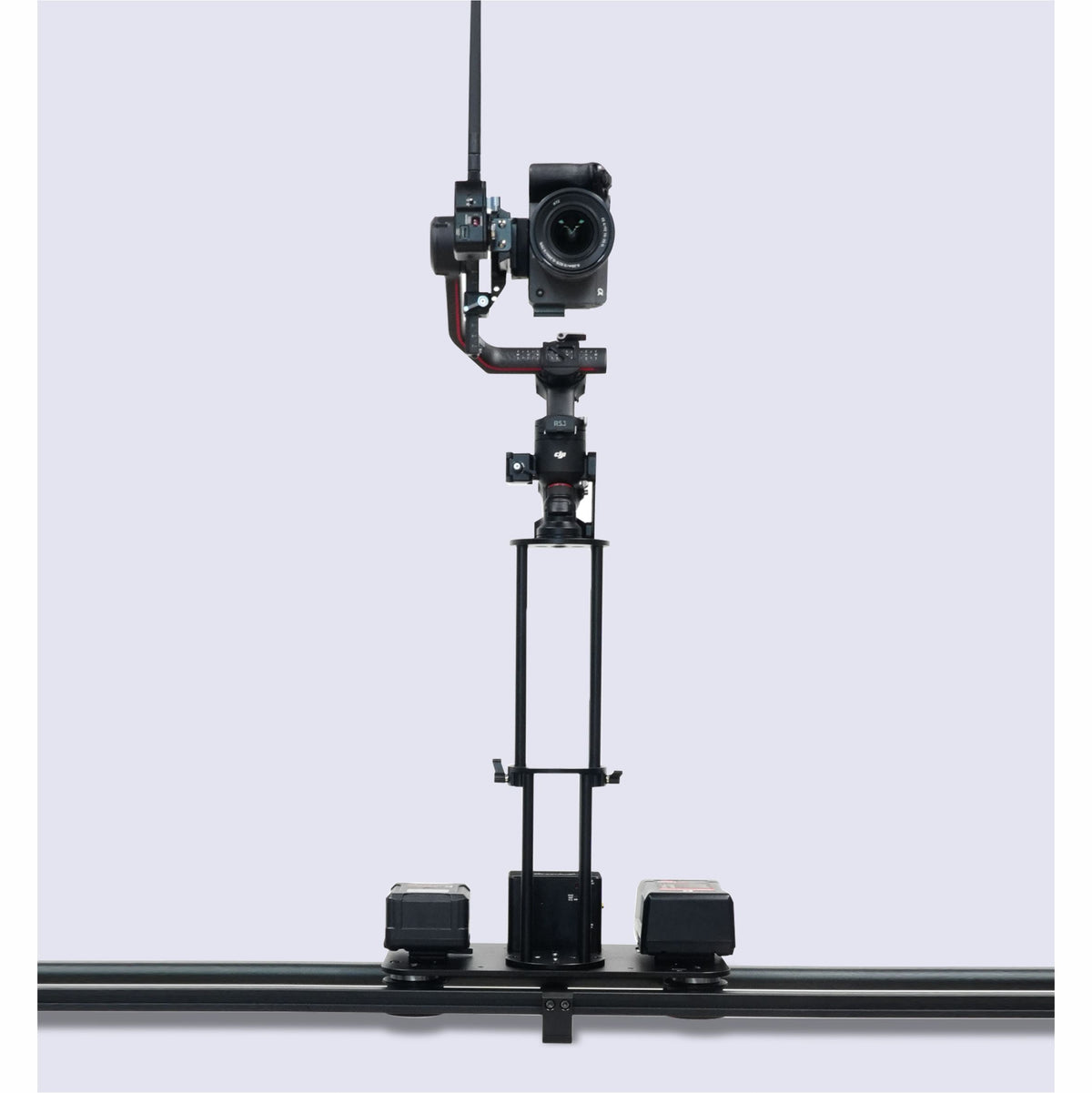

Greenbull XT5 Smart Pro+ Portable Rail Shooting Robot

$4,857.00 USD
$4,857.00 USD
Sale Sold out
  • Lightweight & portable, quick on-site deployment.
  • High compatibility with native protocols of DJI and Sony mirrorless cameras.
  • Wireless & wired dual control, ultra-long stable remote control.

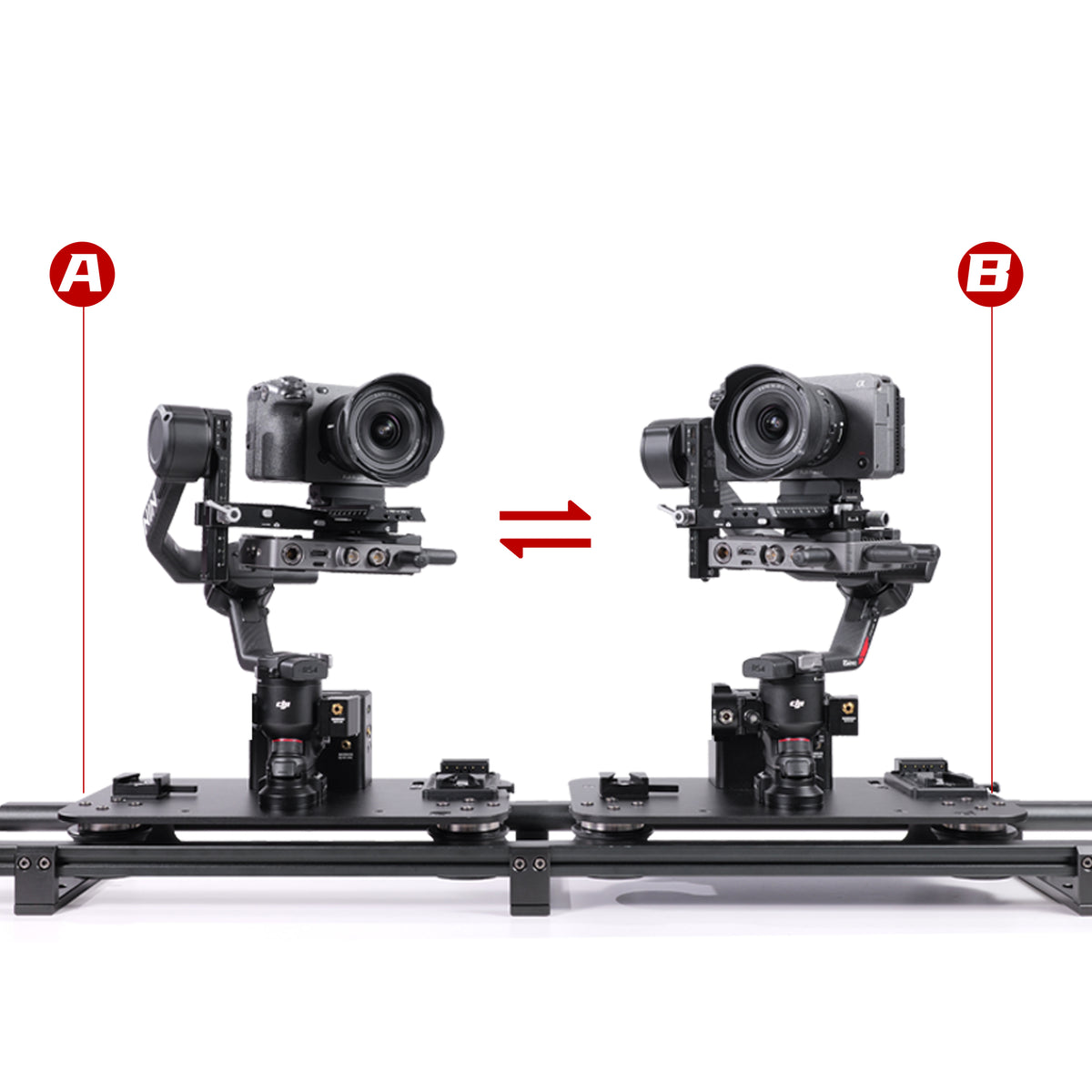

  • AB limit stops, 4 preset positions, synchronous cruise & intelligent tracking.
  • Long endurance + diverse control options.
Select Option
XT5 Smart Pro+ Package
XT5 Smart Pro+ Package
USD $4,857.00
In Stock
1

XT5 smart slide car + RC303 multi-function remote control + second-generation camera remote control + boost antenna

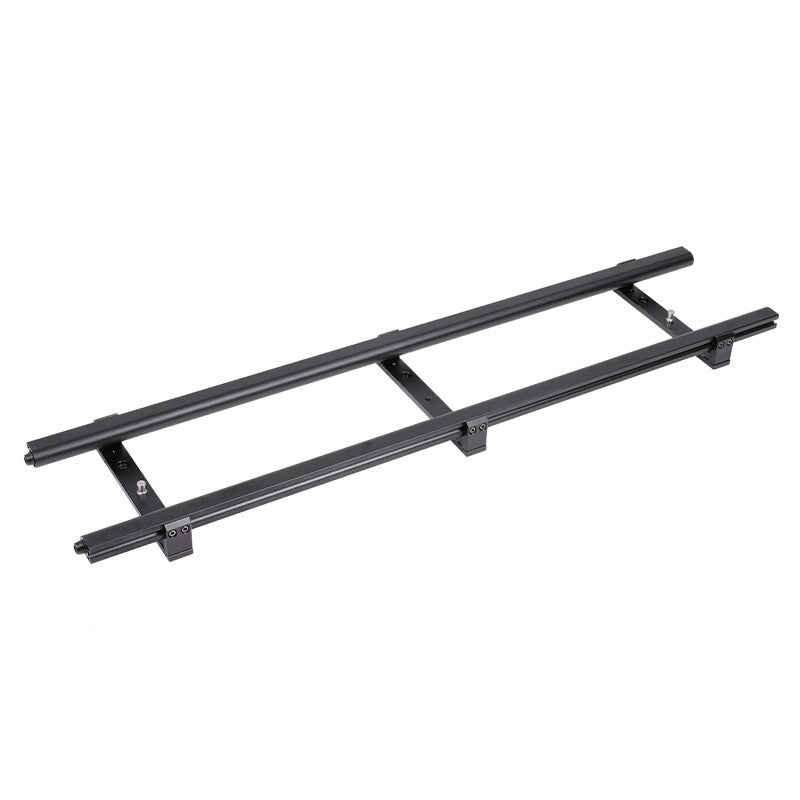

Straight rail
Straight rail
USD $257.00
In Stock
1

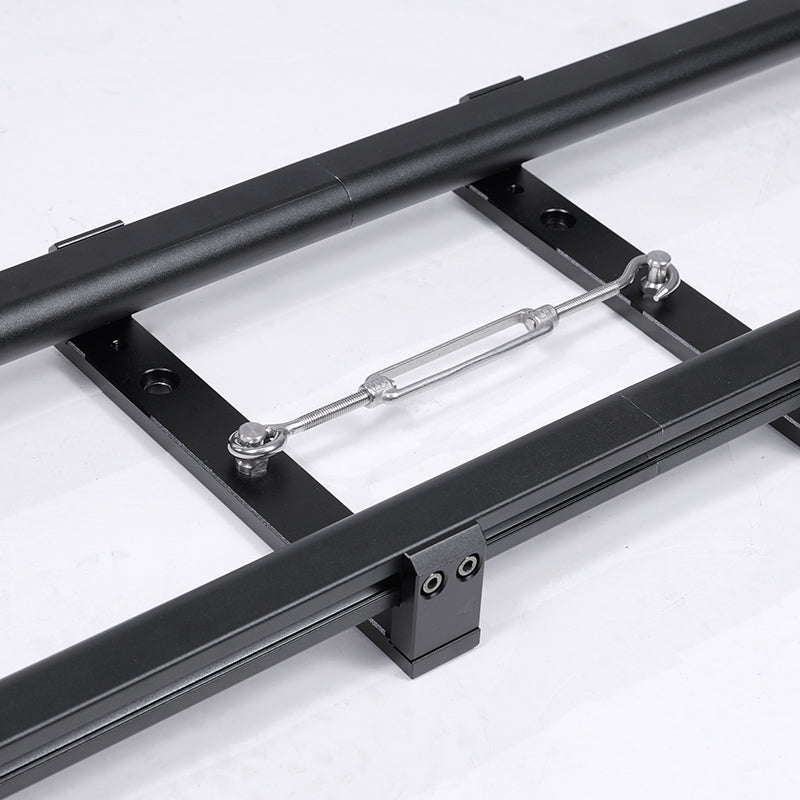

1m/section, a tensioner for each section

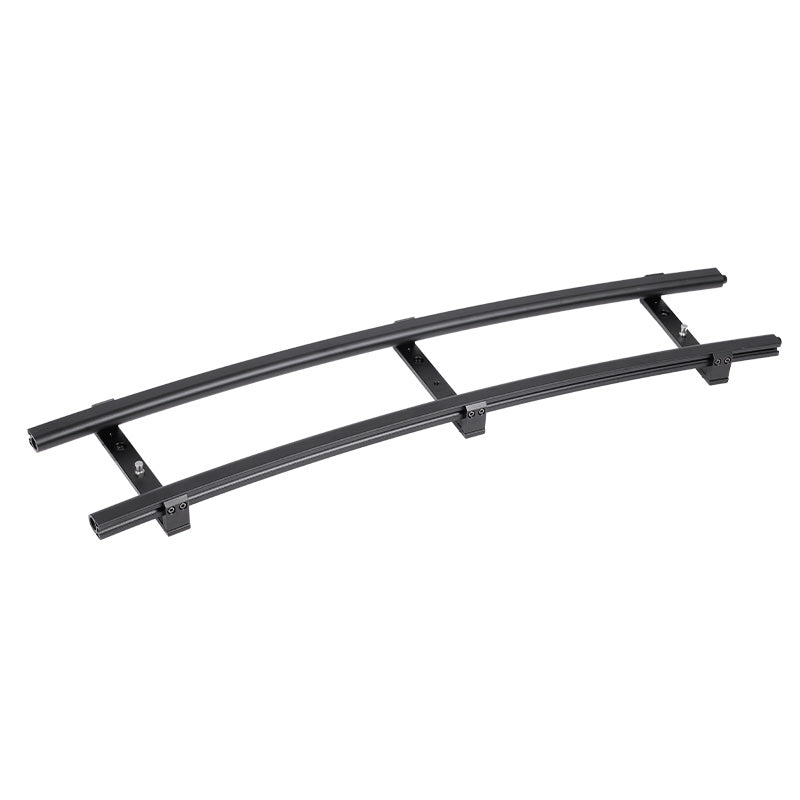

Bending rail
Bending rail
USD $286.00
In Stock
1

1.05m/section; diameter 6m; curvature 20 °, 18 sectionscan be assembled into a circle; a tensioner for each section

Rail roller portable bag
Rail roller portable bag
USD $228.00
In Stock
1

Each bag can hold 6 rails

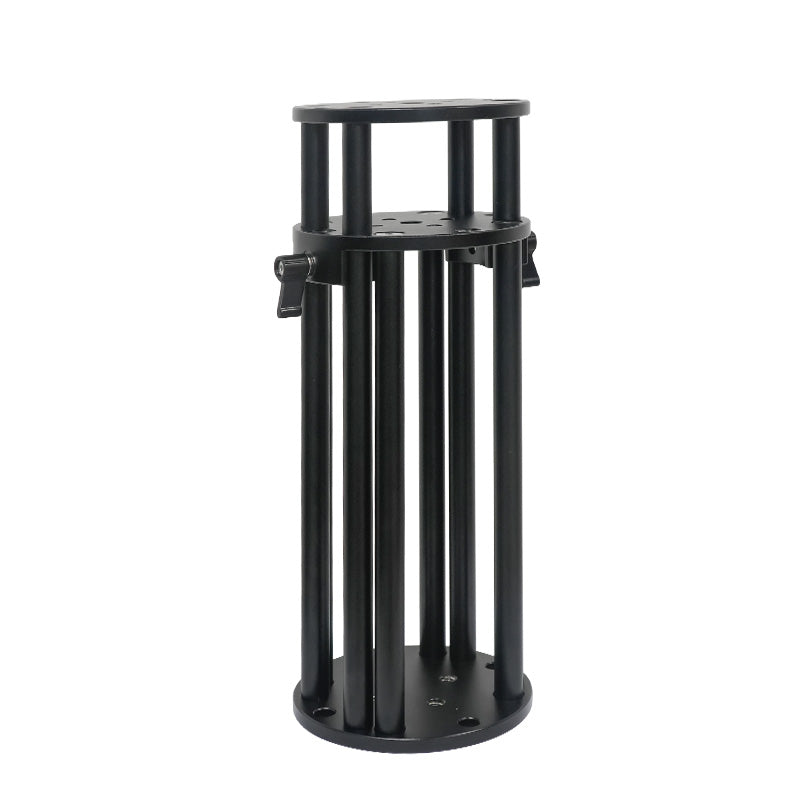

Telescopic column
Telescopic column
USD $571.00
In Stock
1

Adjustable within the height of 0.3~0.6m

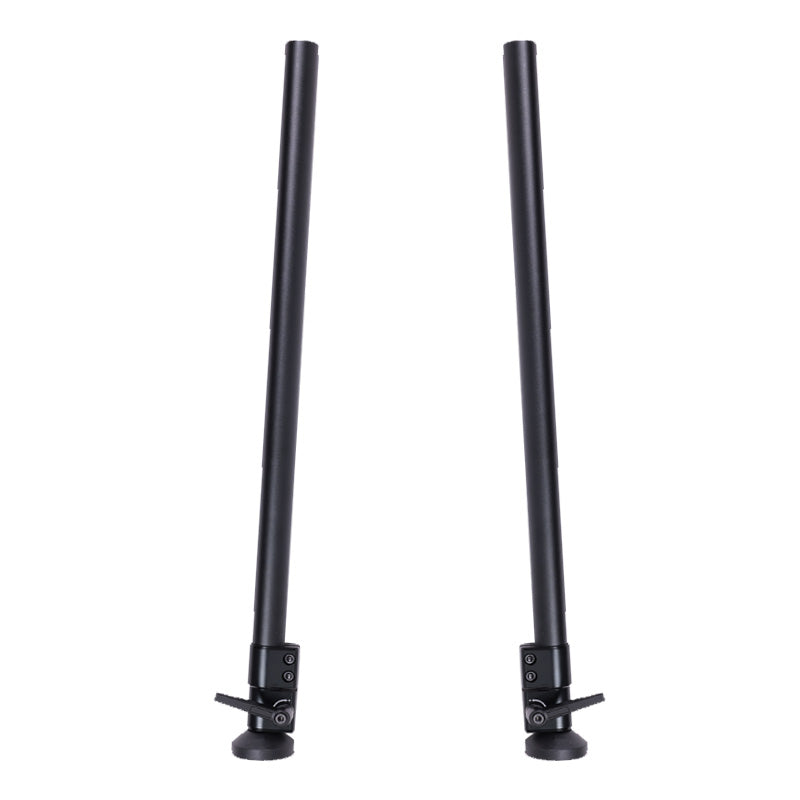

1.2mTelescopic leg
1.2mTelescopic leg
USD $286.00
In Stock
1

Height adjustment: 0.66-1.2 meters.
Each track section requires one set: including 2 beams and 4 high legs.

Leg roller portable bag
Leg roller portable bag
USD $171.00
In Stock
1

Each bag can hold 5 sets of legs
In Stock
USD $4,857.00
Deep Dive
Learn More

XT5 Smart Pro+ Packing List

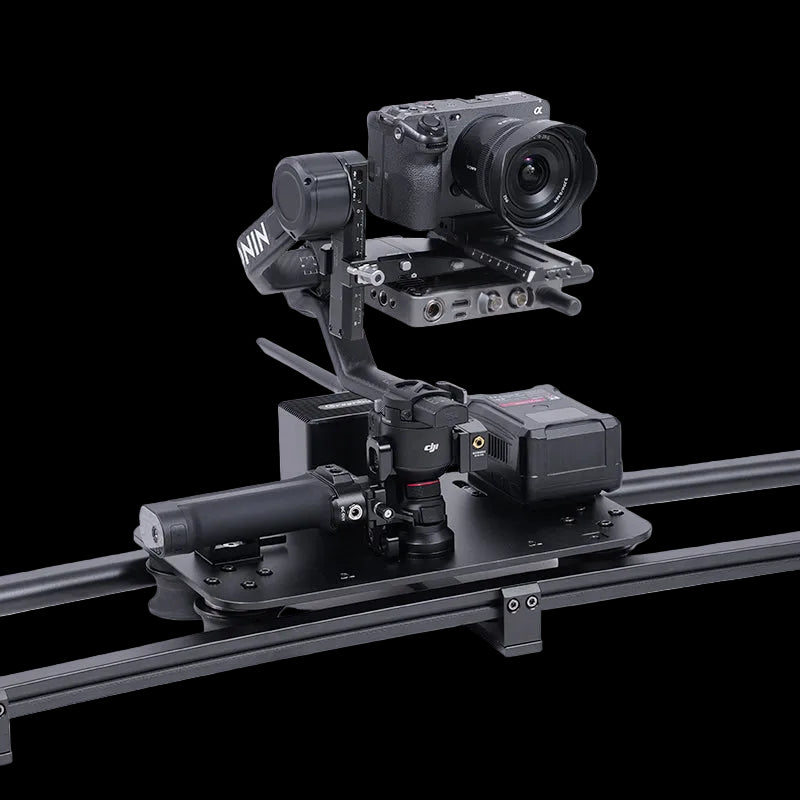

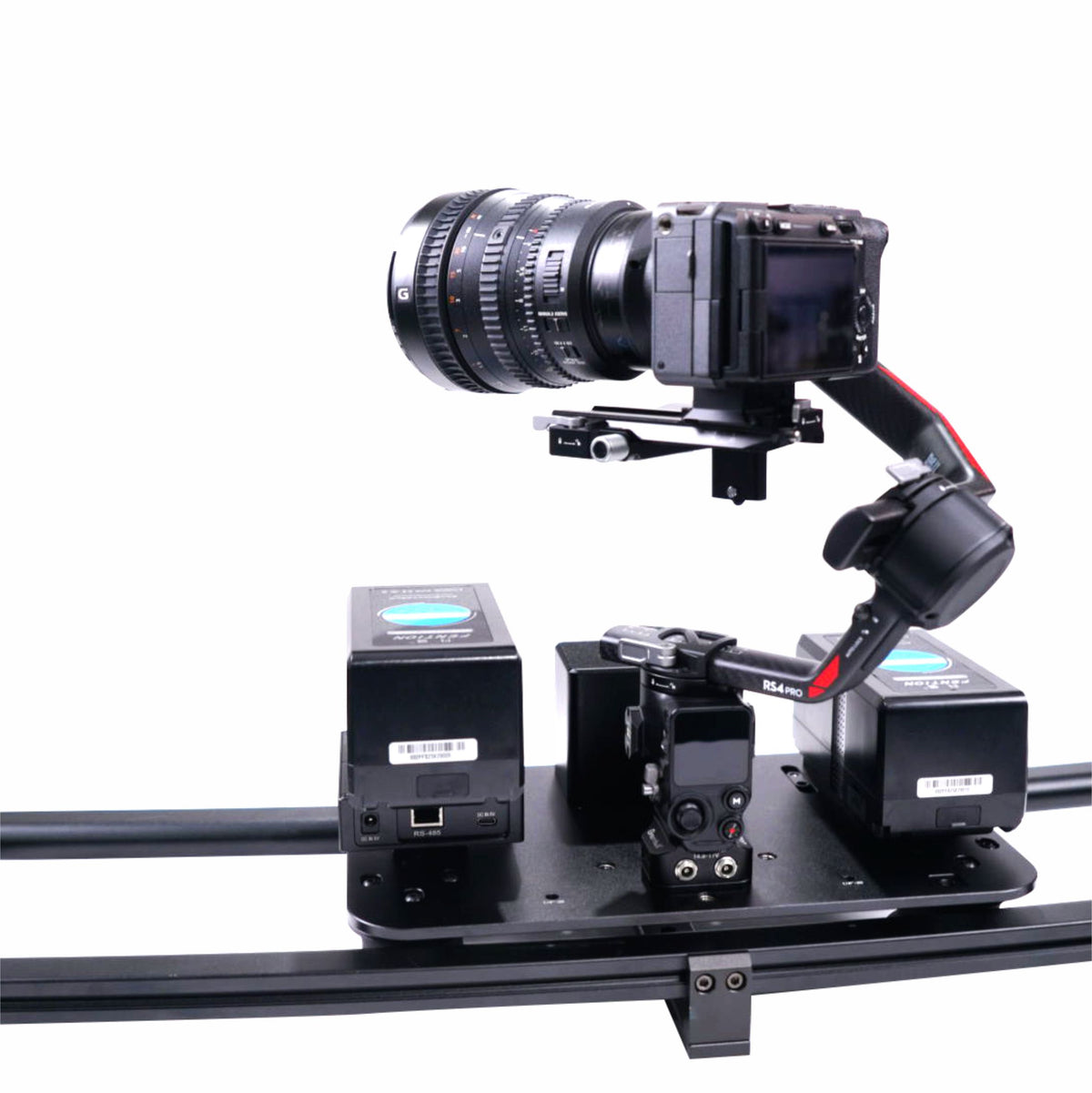

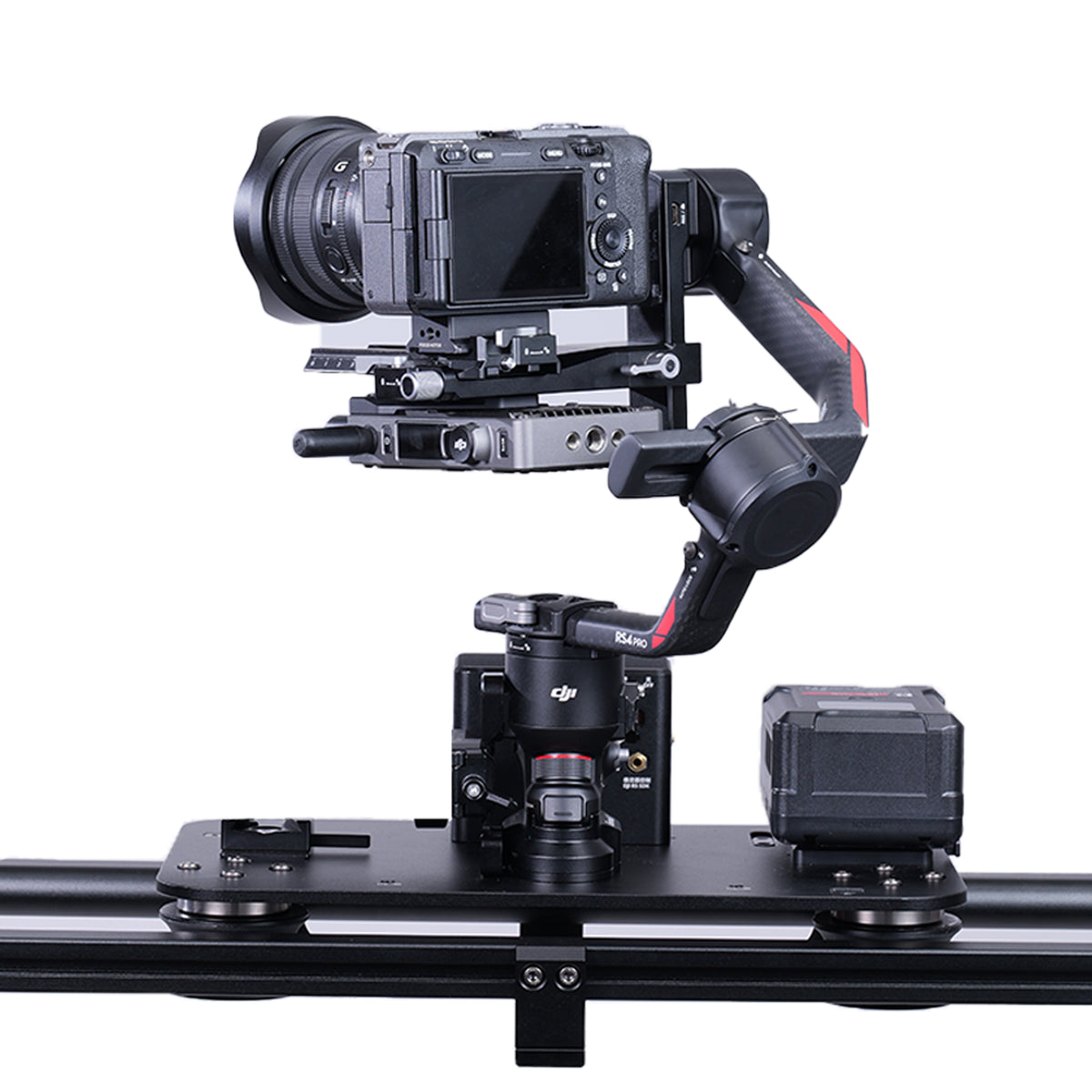

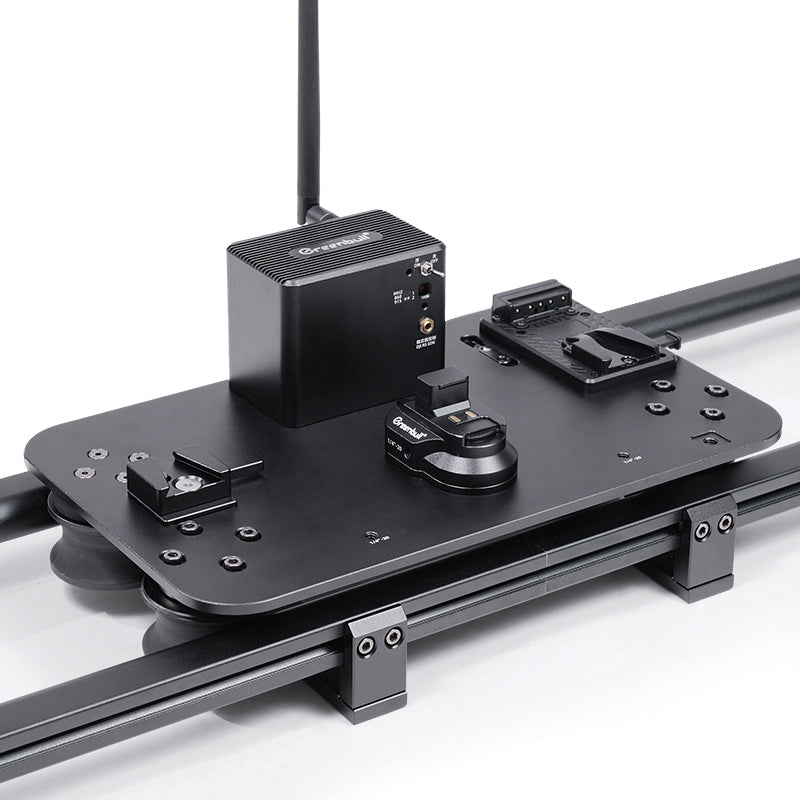

XT5 Smart Pro+ dolly
XT5 Smart Pro+ dolly × 1

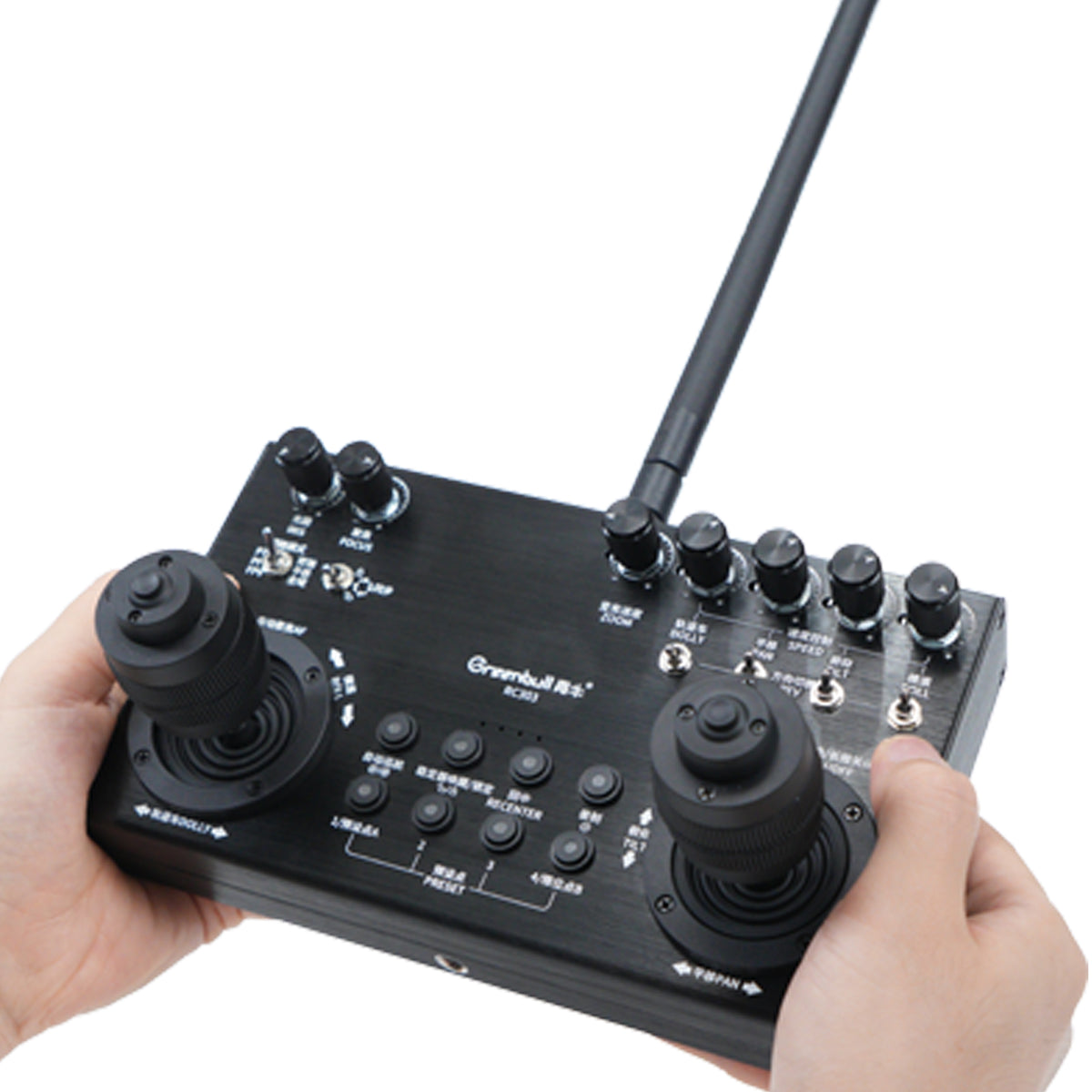

RC303 Multi-function Remote Control
RC303 Multi-function Remote Control × 1
Second-generation camera controller
Second-generation camera controller × 1
Gimbal Controller
Gimbal Controller × 1
Power supply base of stabilizer
Power supply base of stabilizer × 1

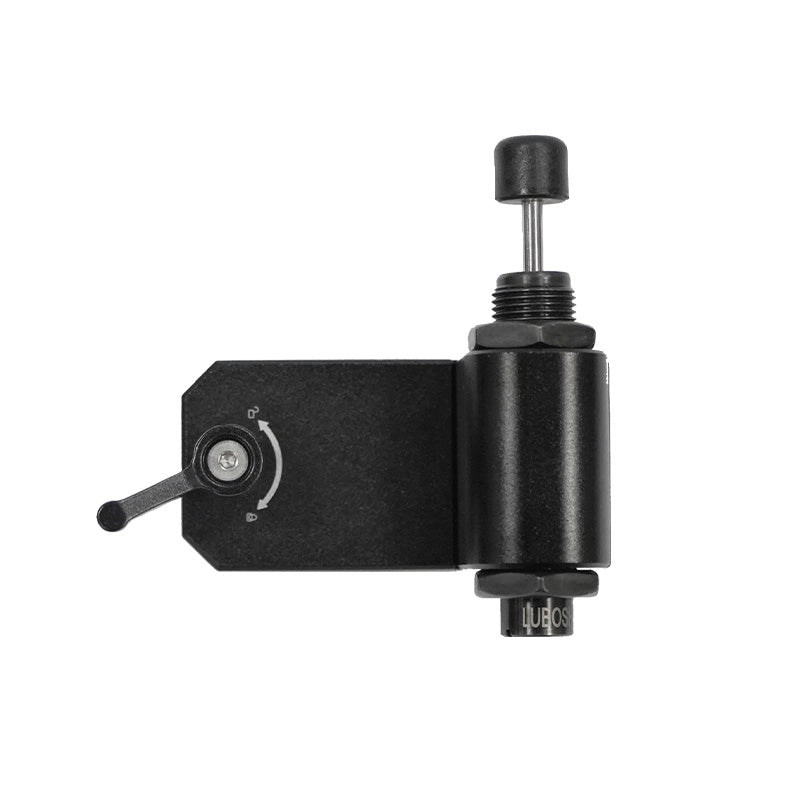

Hydraulic spring safety stopper
Hydraulic spring safety stopper × 2
Reinforcing rod and screws（Suitable for RS4 PRO/RS3 PRO/RS2）
Reinforcing rod and screws（Suitable for RS4 PRO/RS3 PRO/RS2） × 1
L-shaped mounting accessories, screws, and tools
L-shaped mounting accessories, screws, and tools × 1
5V Adapter and Power Cord
5V Adapter and Power Cord × 1

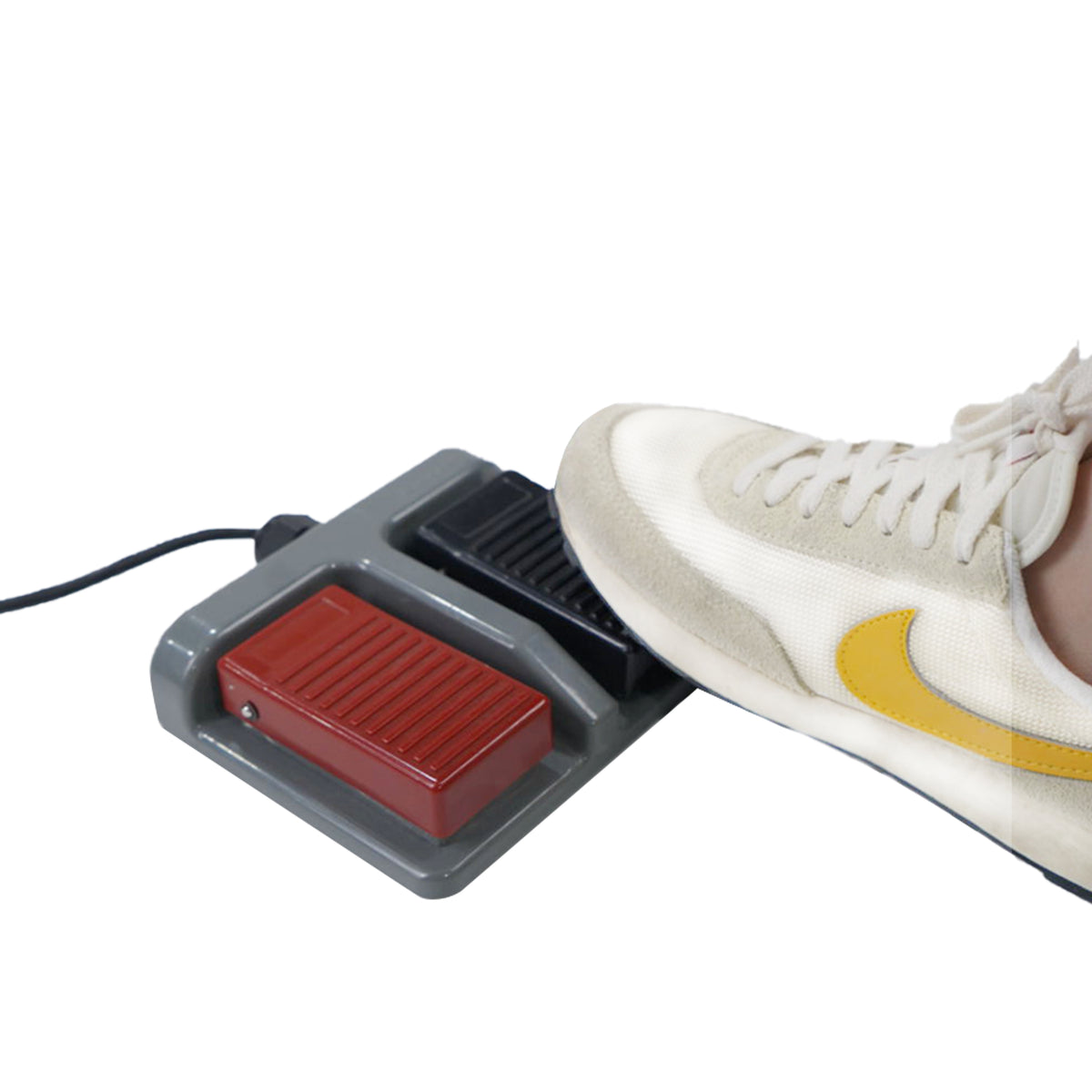

Pedal control
Pedal control × 1
Antenna
Antenna × 3

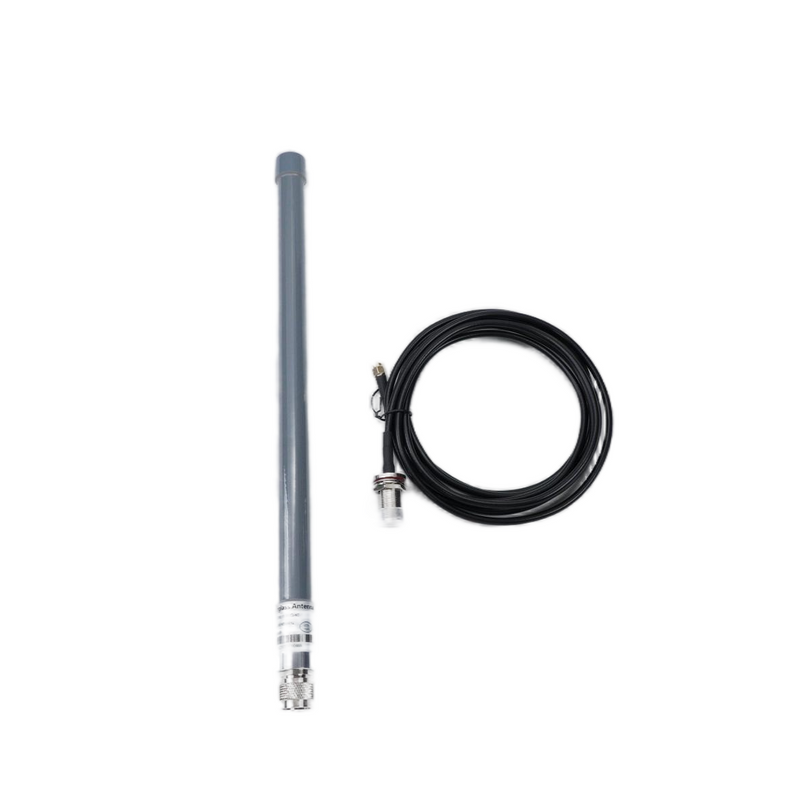

Gain antenna and extension line
Gain antenna and extension line × 1
⏀3.5mm Stabilizer control line
⏀3.5mm Stabilizer control line × 2
⏀2.5mm Video camera remote control cable
⏀2.5mm Video camera remote control cable × 2
Camera control cable
Camera control cable × 2
Type-C power cable
Type-C power cable × 2
Type B D-TAP to DC spring power supply cable
Type B D-TAP to DC spring power supply cable × 1
Cable extender pole and mounting screws, wrench
Cable extender pole and mounting screws, wrench × 1

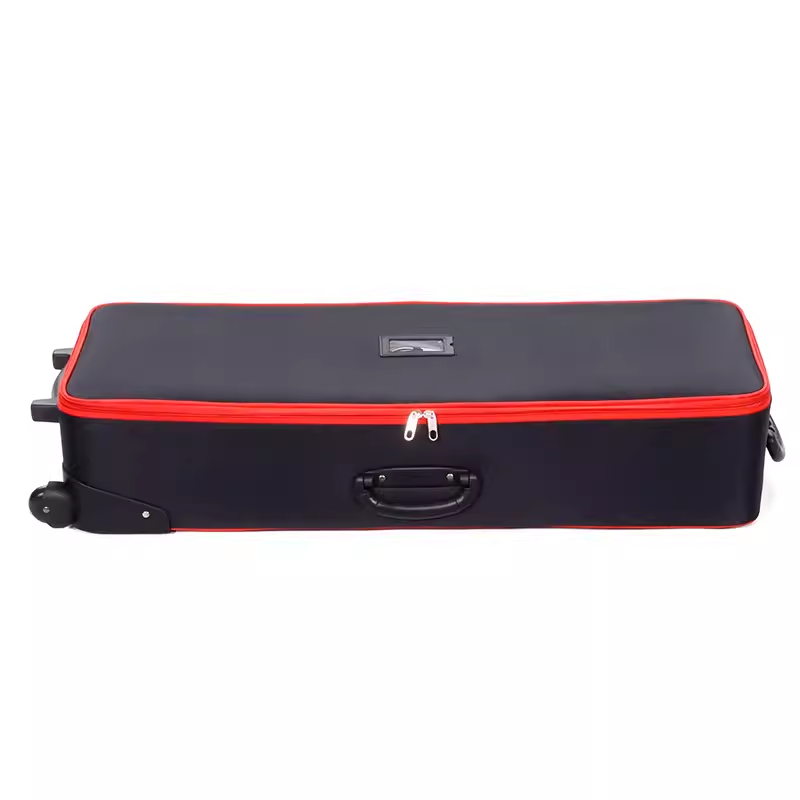

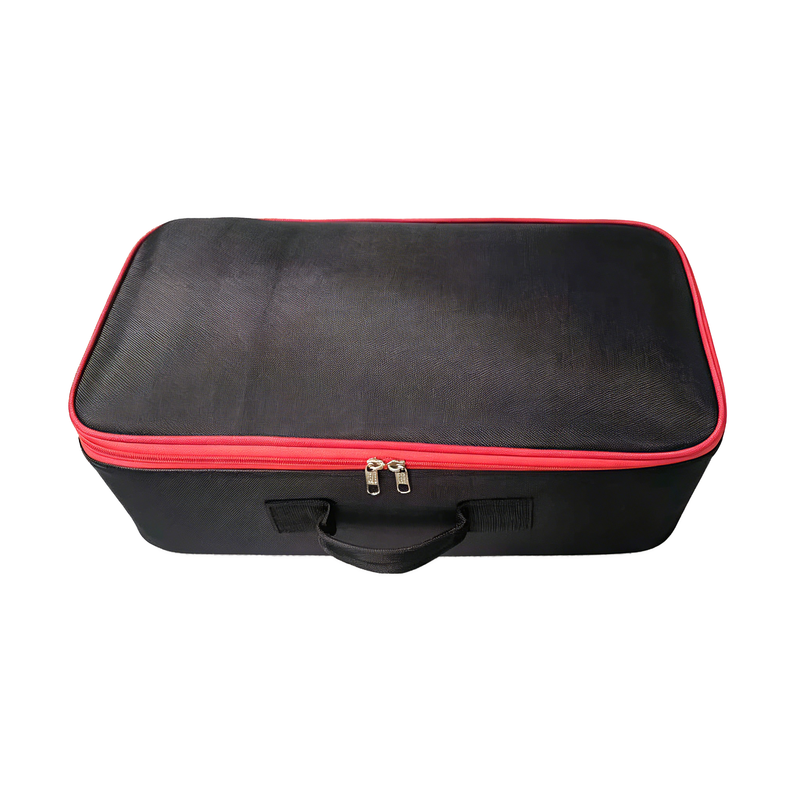

Portable bag
Portable bag × 1
Bending rail
Bending rail
Straight rail
Straight rail
Telescopic column
Telescopic column
Rail roller portable bag
Rail roller portable bag
1.2mTelescopic leg
1.2mTelescopic leg
Leg roller portable bag
Leg roller portable bag
* For the convenience of users in different regions, specific AC power cables are provided based on the shipping destination.
Specifications
Specifications
Orbit Parameters

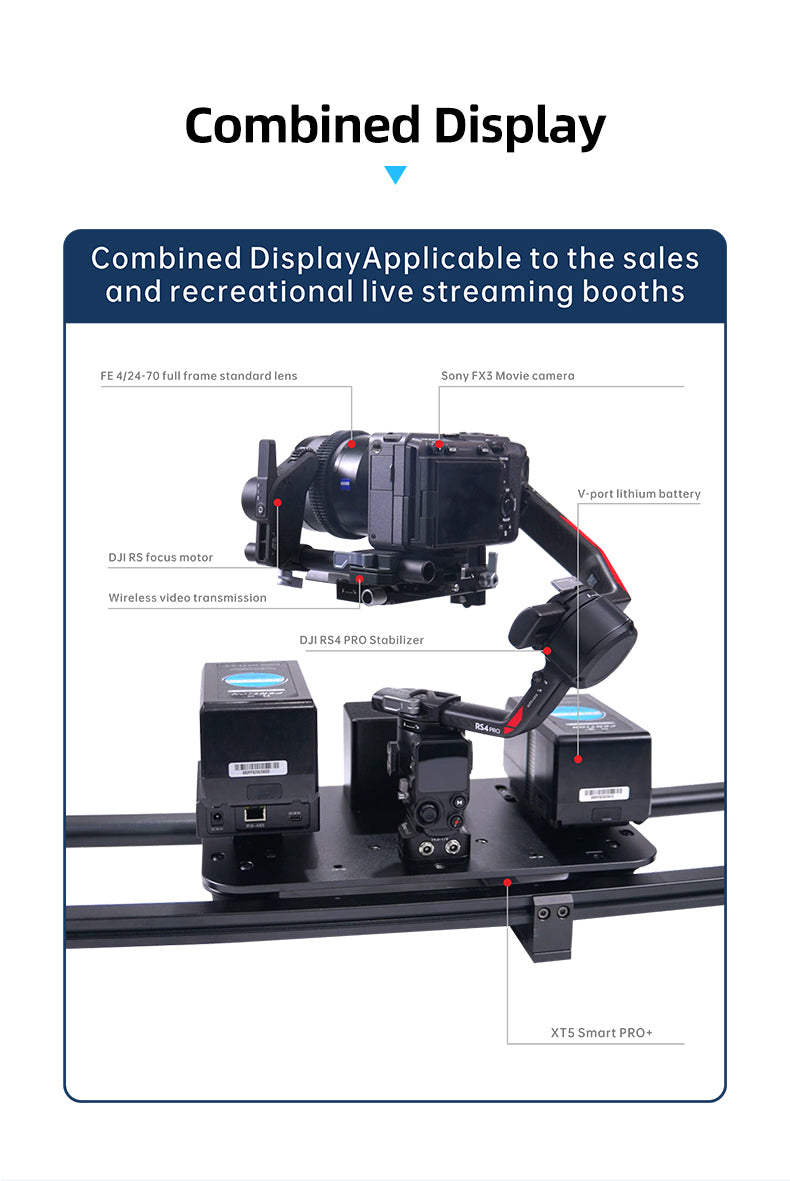

SPECIFICATIONS

Component Sales & Live Streaming Booths

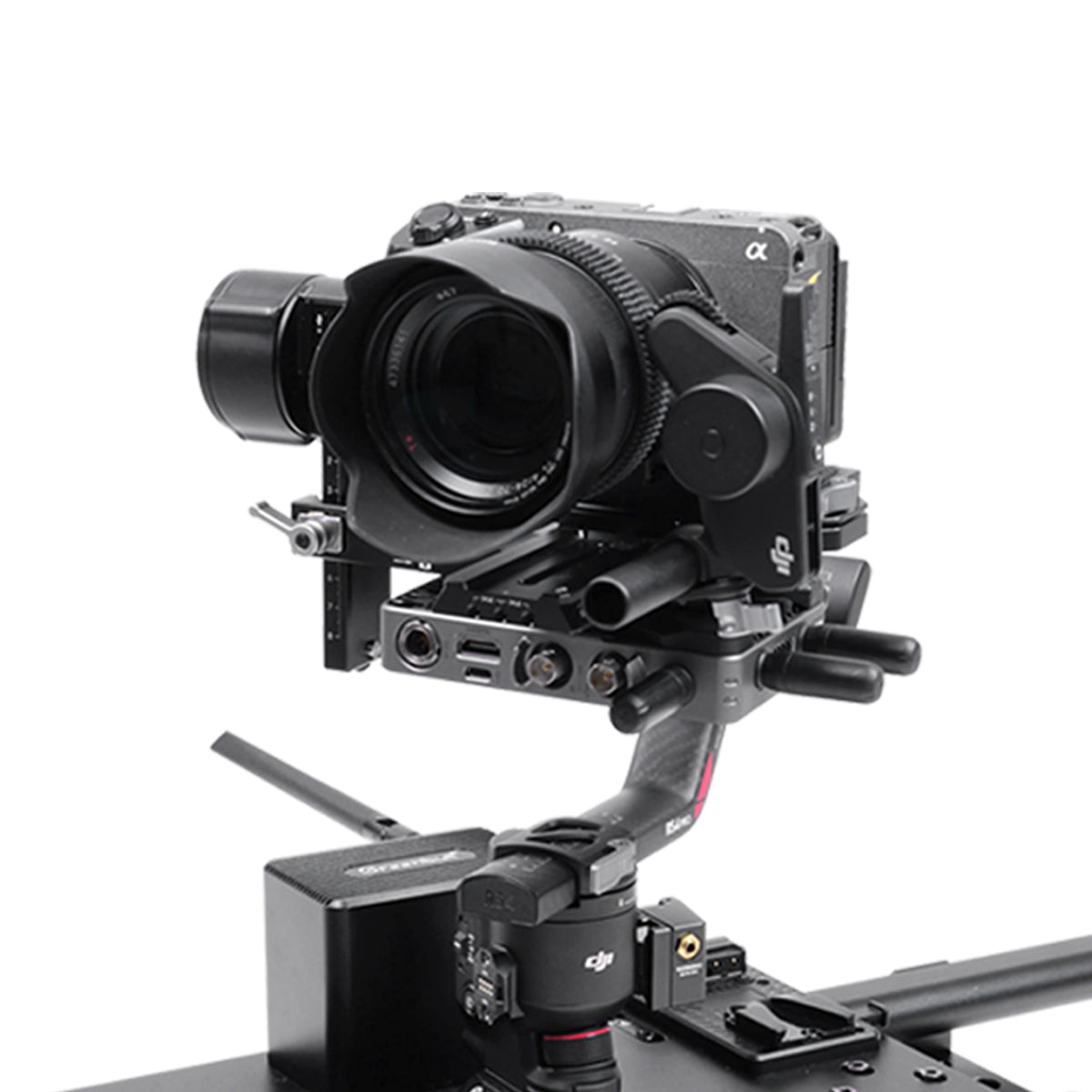

Lens FE 4/24-70 full frame standard lens
Camera Sony FX3 Movie camera
Battery V-port lithium battery
Focus Motor DJI RS focus motor
Video Transmission Wireless video transmission
Stabilizer DJI RS4 PRO Stabilizer
Railcar XT5 Smart PRO+

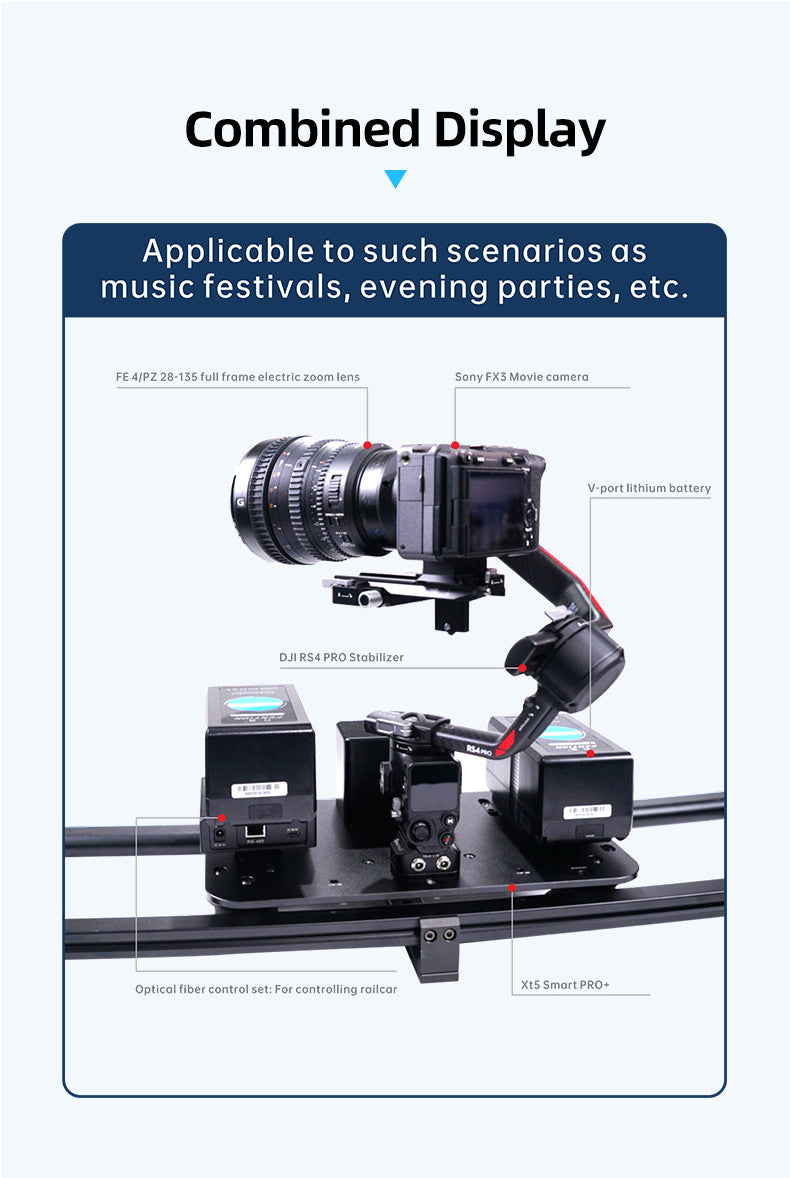

SPECIFICATIONS

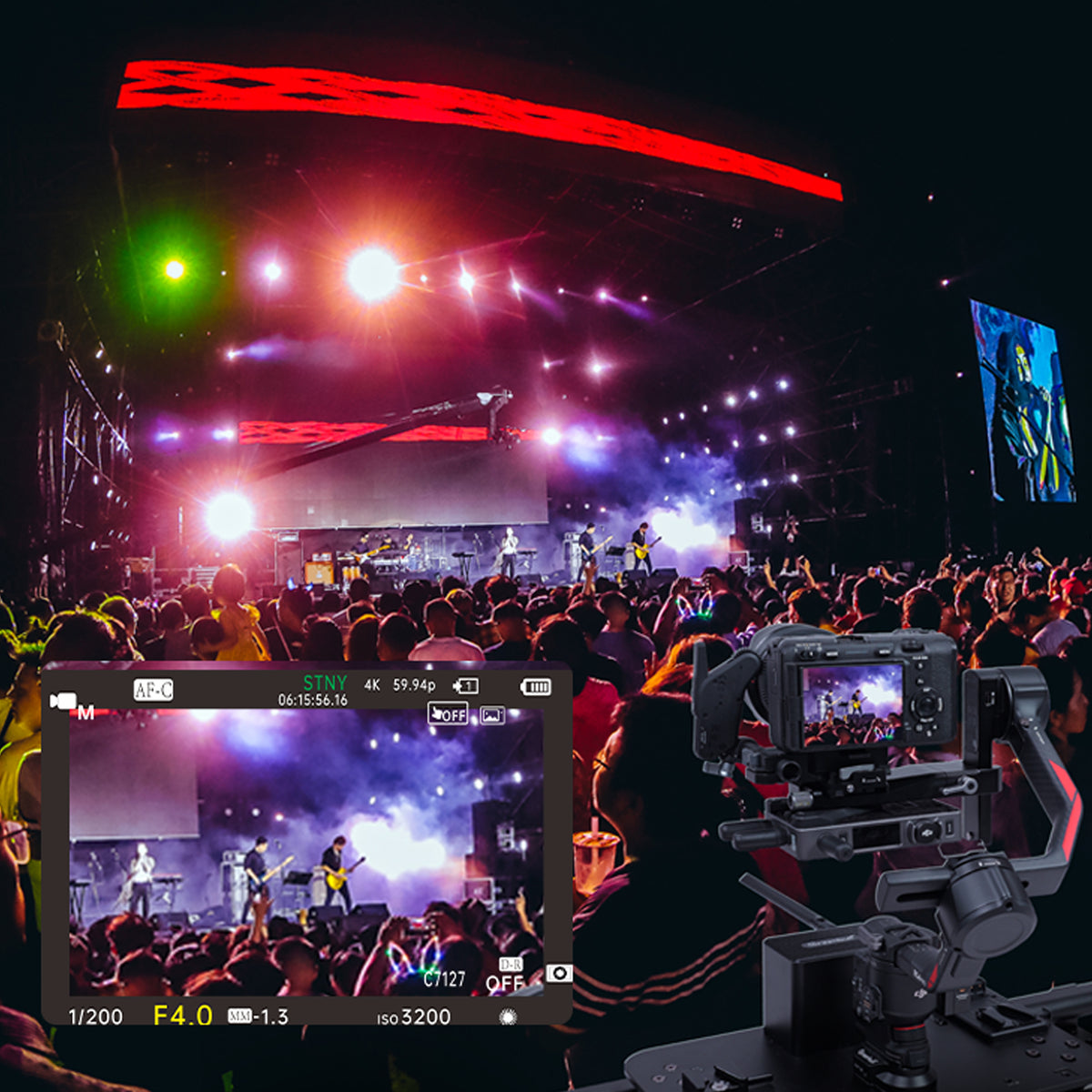

Component Music Festivals, Evening Parties
Lens FE 4/PZ 28-135 full frame electric zoom lens
Camera Sony FX3 Movie camera
Battery V-port lithium battery
Stabilizer DJI RS4 PRO Stabilizer

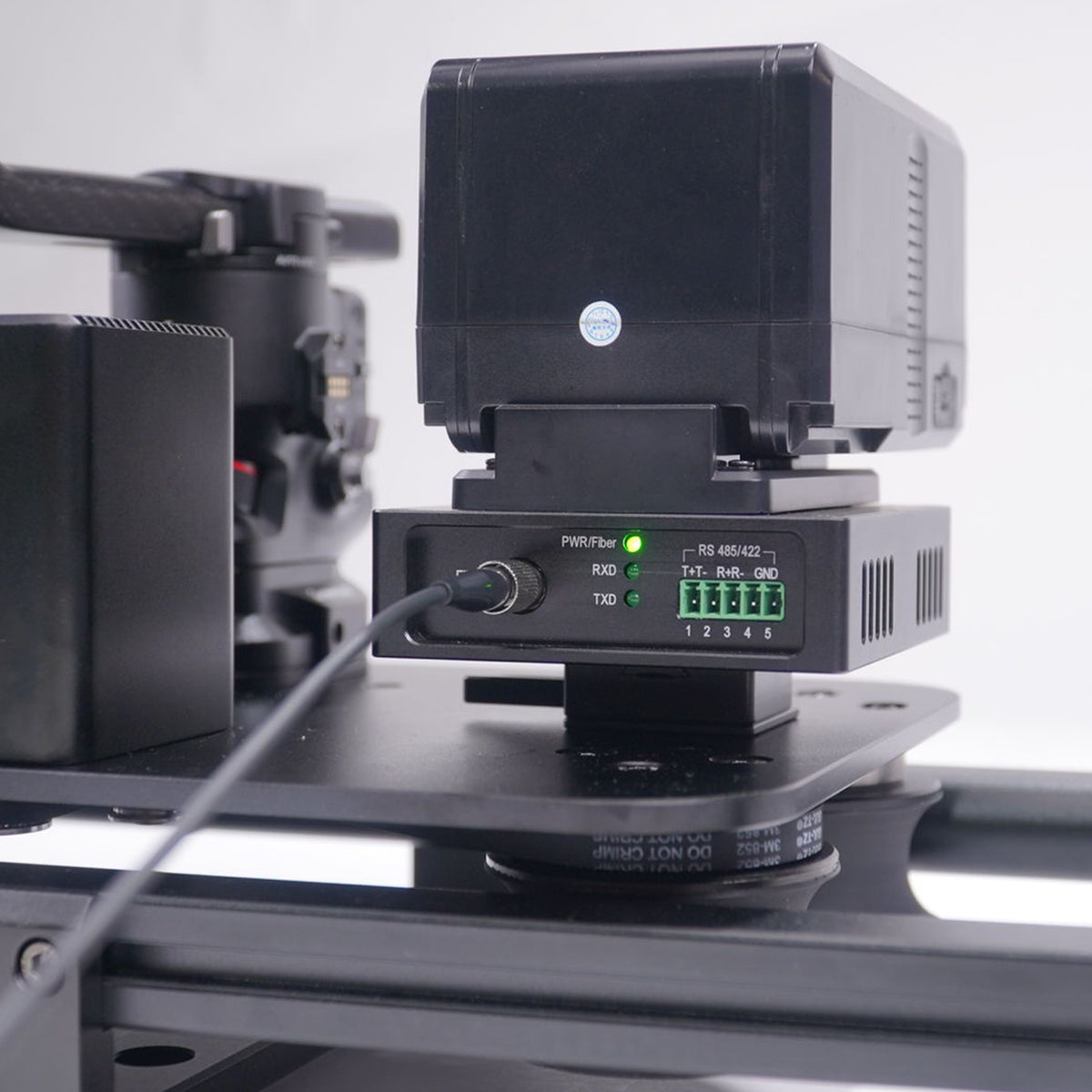

Control Optical fiber control set: For controlling railcar
Railcar Xt5 Smart PRO+

ORBIT PARAMETERS

Name Name Parameters
Material > Aluminum alloy, black anodized
Track gauge > 172mm
Straight rail Dimensions 1,000x227x50mm (LxWxH)
^ Weight 1.9kg; 6.6kg (with leg)
Bending rail Dimensions 1,050x227x50mm (LxWxH)
^ Radius 3m, 20 radians/section, 18 sections can form a circle
^ Weight 1.9kg; 6.6kg (with high telescopic leg)

Compare Models

Model
Greenbull XT5 Smart Pro+ Portable Rail Shooting Robot

XT5 Smart Pro+

$171.00
Buy Now
XT50 Remote controlled Track Camera System

XT50

$343.00
Buy Now
Payload (Including Gimbal) ≤ 6kg ≤ 20kg
Speed Range ≤ 2 m/s ≤ 2 m/s
Operating Voltage DC 14.8V DC 29.6V
Power Interface 2× V-Mount Battery Plates | (1 for gimbal + 1 for dolly independent power supply) 4× V-Mount Battery Plates | (2 for gimbal + 2 for dolly independent power supply)
Remote Controller RC303 Multi-Function Remote with 3D Joystick RC303 Multi-Function Remote with 3D Joystick
Remote Control Method Wireless (915MHz: 4 channels; open area ≥ 100m) | Wired (RS485: RJ45; up to 1000m) Wireless (915MHz: 4 channels; open area ≥ 100m) | Wired (RS485: RJ45; up to 1000m)
Dolly Control Stepless Speed Control: | 1. Joystick | 2. Foot Controller | 3. Auto Cruise Stepless Speed Control: | 1. Joystick | 2. Foot Controller | 3. Auto Cruise
Gimbal Power Base Yes Yes
Compatible Gimbals DJI RS5, RS4 Pro, RS4, RS3 Pro, RS2 DJI R2, RS5, RS4 Pro, RS4, RS3 Pro, RS2
DJI Ronin 2 (R2) Gimbal Control (D-BUS Protocol) No Pan, Tilt, Roll, Home Position Reset
Gimbal Control (DJI RS SDK Protocol) 3-Axis Attitude Control / Direction Switch / Speed Adjustment / Home Position / Lock / Wake-Up / Follow Mode Switch / Multi-Axis Sync 3-Axis Attitude Control / Direction Switch / Speed Adjustment / Home Position / Lock / Wake-Up / Follow Mode Switch / Multi-Axis Sync
Pre-Set Key Positions 4 (AB Limit Points + 2 Presets) 4 (AB Limit Points + 2 Presets)
DJI RS Smart Tracking Module Control Activate / Deactivate / Framing | *For DJI RS4 Pro / RS4 Activate / Deactivate / Framing | *For DJI RS4 Pro / RS4
DJI RS Focus Motor Control Zoom Control Zoom Control
Camera Controller 2nd Generation Mirrorless / Cinema Camera Controller | *Integrated Sony mirrorless control protocol, supporting aperture, focus, zoom, recording, etc., for models such as FX3, FX30 | *Integrated DJI gimbal control protocol, compatible with RS5, RS4 Pro, RS4, RS3 Pro, RS2 2nd Generation Mirrorless / Cinema Camera Controller | *Integrated Sony mirrorless control protocol, supporting aperture, focus, zoom, recording, etc., for models such as FX3, FX30 | *Integrated DJI gimbal control protocol, compatible with RS5, RS4 Pro, RS4, RS3 Pro, RS2
Cinema Camera Remote Control Zoom / Zoom Speed, Focus, Aperture, Recording, etc. | *For Sony FX6, Z200, Z90, etc. Zoom / Zoom Speed, Focus, Aperture, Recording, etc. | *For Sony FX6, Z200, Z90, etc.
Camera Remote Control (DJI RS Compatible Cameras) Aperture, Shutter, ISO, Recording, Focus, etc. | *For all cameras compatible with RS4 Pro, RS4, RS3 Pro, RS2; refer to DJI official website for specific models Aperture, Shutter, ISO, Recording, Focus, etc. | *For all cameras compatible with RS4 Pro, RS4, RS3 Pro, RS2; refer to DJI official website for specific models
Mirrorless Camera Remote Control Aperture, Focus, Zoom, Recording | *For Sony FX3, FX30, etc. | *Zoom functions only available when used with power zoom lenses, e.g.: | 1. FE 4/PZ 28–135mm Full-Frame Power Zoom Lens | 2. FE 4/PZ 16–35mm Full-Frame Wide-Angle Power Zoom Lens | 3. E 4/PZ 18–105mm Power Zoom Lens | 4. E 4/PZ 10–20mm Ultra-Wide Power Zoom Lens Aperture, Focus, Zoom, Recording | *For Sony FX3, FX30, etc. | *Zoom functions only available when used with power zoom lenses, e.g.: | 1. FE 4/PZ 28–135mm Full-Frame Power Zoom Lens | 2. FE 4/PZ 16–35mm Full-Frame Wide-Angle Power Zoom Lens | 3. E 4/PZ 18–105mm Power Zoom Lens | 4. E 4/PZ 10–20mm Ultra-Wide Power Zoom Lens
Foot Controller Yes Yes
Track Type Optional: Straight or Curved Track Optional: Straight Track
Telescopic Column Optional (Height adjustable: 0.35–0.6m Optional (Height adjustable: 0.4–1m)
Slider Column No Optional (Height: 15/20cm)
Telescopic High Legs Optional (Height adjustable: 0.66–1.2m) No

Camera Compatibility List

(Supports Bluetooth Shutter)

Sony A9, A9 II, A9 III, A6400, A7R V, A7R IV, A7R III, A7M4, A7M III, A7S III, FX3, FX30, A1, A1 II, ZV-E1, ZV-E10, ZV-E10 II, A7CR, A7C, A7C II, A6100, A6700, RX100 VII
Canon EOS R50, EOS R10, EOS R8, EOS R7, EOS R6, EOS R6 Mark II, EOS R5, EOS R50V, EOS R, EOS RP, G7X Mark 3, EOS M50, EOS M50 Mark II, EOS M6 Mark II, EOS 90D, EOS 200D II, EOS 800D, EOS 850D, EOS 6D Mark II
Nikon Z5, Z5 II, Z7 II, Z6 II, Z6 III, Z50, Z50 II, Z30, Zfc, ZF
Panasonic GH7, S1 M2, S1 M2 ES, S1 R2, S5 M2X
View full compatibility list >
